STEDI 11 Inch ST3303 PRO LED Lightbar Inner Grill Bundle

NEXT-GEN COVERED.

The Inner Grille Bracket has been carefully designed to suit Ford’s next-gen Ranger Raptor, catering to 2 of the performance-packed ST3303 Pro LED Light Bars.

LINGERING IN THE DARKNESS.

Hidden neatly behind the factory grille, the Inner Grille Bracket will preserve the OEM finish that you ever so desire, whilst the pair of ST3303 Pro Light Bars will be sure to make their presence known at night, throwing an abundance of light at the road ahead.

CHANGE ISN’T ALWAYS A GOOD THING.

The simple, modification-free install of the Inner Grille Bracket is designed not to obstruct any factory collision & safety sensors, meaning no sparks need to fly and the OE factory warranty remains intact.

Technical Data

STEDI 11 Inch ST3303 PRO LED Lightbar Inner Grill Bundle

LED	12 x CREE XPL Hi-Intensity LED (each)
VOLTAGE	9V – 32V
CURRENT DRAW (AMPERES)	5.9a @ 13.6v (each)
RAW LUMENS	13,140Lm (each)
EFFECTIVE LUMENS	6,720Lm (each)
PEAK INTENSITY (CANDELA)	360,800cd (each)
COLOUR TEMP (CCT)	5700K
LENS MATERIAL	Optical Grade, Hard-Coated Lexan
HOUSING MATERIAL	A360.0 Cast face plate, extruded Aluminum heat sink
INGRESS PROTECTION	IP68
FLOOD BEAM	50°
SPOT BEAM	9°
LIFESPAN	50,000hrs
OPERATING TEMP	-40°C ~ +150°C
WEIGHT	1,295kg (each)

Designed to fit all Ford Next-Gen Ranger-Raptor models ONLY!

Does not fit Ford Ranger or Everest models, please see the Next-Gen Ranger Everest Inner Grill Bundle for these models.

Manufactured with 3mm Stainless Steel, and designed to be fastened to pre-existing holes which are already present on the inner side of the front grille. This is a completely non-intrusive install meaning that no new holes need to be made, nor do sections of the front bumper need any cutting or modifying.

The end result is a very robust, stealth installation.

Design is optimized to suit the STEDI ST3303 PRO 11″ Light Bar ONLY.

• Stainless Steel
• Designed to minimize disruption of air-flow
• No need to remove front bumper
• Bolts to pre-existing holes
• No drilling required, bolt and nut kit included
• PLEASE NOTE – In some versions around the world, some modification may be needed to radiator slats behind grill to be able to install.

What’s Included.

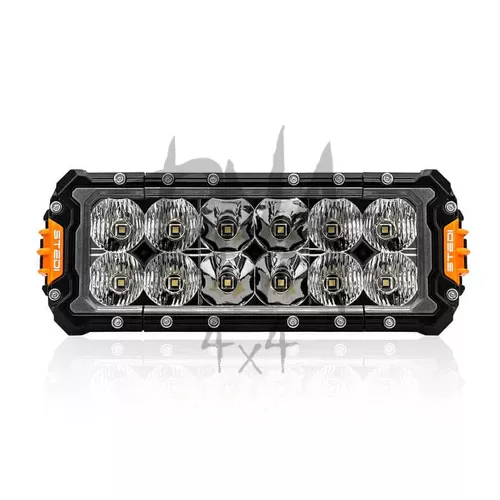

• 2x ST3303 PRO 12 LED 11 Inch Light Bars
• Next-Gen Raptor Inner Grille Bracket
• Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
• 1 x Lower Mounting Bracket with Stainless Steel Fasteners
• 2 x 4mm thick Stainless Steel Side Brackets
• 2 x Orange End Caps
• 2 x Grey End Caps

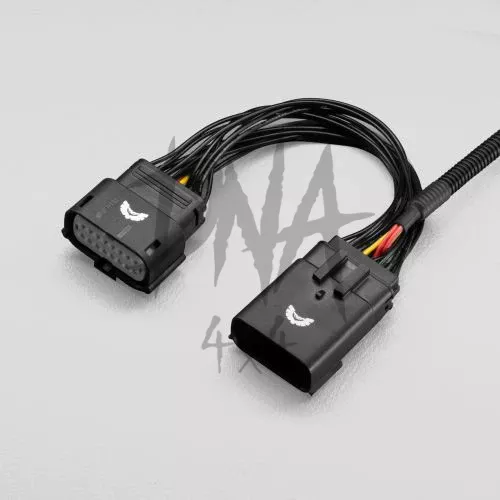

• Ford Ranger Piggyback Adaptor (L1&3)
• 2 To 1 DT Splitter
