SOLD OUT

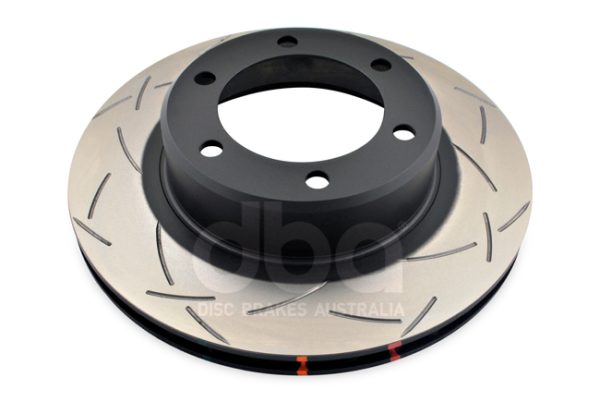

DBA 4000 Series T3 Slotted Front Brake Disc 319 x 22mm for Toyota 4 Runner VZN185 / Toyota Hilux / Toyota Land Cruiser
DBA 4000 Series T3 Slotted Front Brake Disc 319 x 22mm for Toyota 4 Runner VZN185 / Toyota Hilux / Toyota Land Cruiser
  1. DBA 4000 Series T3 Slotted Front Brake Disc 319 x 22mm for Toyota 4 Runner VZN185 / Toyota Hilux / Toyota Land Cruiser
  2. DBA 4000 Series T3 Slotted Front Brake Disc 319 x 22mm for Toyota 4 Runner VZN185 / Toyota Hilux / Toyota Land Cruiser

DBA 4000 Series T3 Slotted Front Brake Disc 319 x 22mm for Toyota 4 Runner VZN185 / Toyota Hilux / Toyota Land Cruiser

Availability: Usually in UK/EU stock

£197.51 Incl. VAT (UK only)

DBA 4000 Series T3 Slotted Front Brake Disc 319mm (DBA4792S). 319mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.

Out of stock

SKU: DBA4792S Categories: , , , , , , , , , , , , , Tags: , Brand:
Guaranteed Safe Checkout

DBA 4000 Series T3 Slotted Front Brake Disc 319mm (DBA4792S) is listed for the vehicle applications below.

Product features

  • T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
  • High-carbon alloyed iron provides thermal capacity for repeated braking.
  • DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
  • Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.

Technical specifications

Brand DBA (Disc Brakes Australia)
Part number DBA4792S
Application position Front
Supplied quantity 1 brake disc
Diameter [mm] 319
Disc ventilation Kangaroo Paw
Number of mounting holes 6
Centre bore [mm] 108
Minimum Thickness [mm] 20
Thickness [mm] 22
Overall height [mm] 70
Pitch circle diameter [mm] 140
DBA stage Stage 4
ECE R90 number E11*90R02/06*60523*00
Range 4000 Series T3 Slotted
Supplier-listed product weight [kg] 7.10

Vehicle compatibility

Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.

Make Model / chassis Engine / variant Years Axle Brake-system notes
Toyota 4 Runner VZN185 3.4 (1995-2002) 1995-2002 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Hilux Surf KZN185 3.0 TD (1995-2000) 1995-2000 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Hilux Surf RZN185 2.7 (1995-2003) 1995-2003 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Hilux Surf VZN185 3.4 (1995-2003) 1995-2003 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Hilux Surf VZV130 3.0 (1988-1989) 1988-1989 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser KDJ90 3.0 TD (2000-2003) 2000-2003 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser KDJ95 3.0 TD (2000-2003) 2000-2003 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser KZJ90 3.0 TD (1996-2001) 1996-2001 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser KZJ95 3.0 TD (1996-2001) 1996-2001 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser RZJ90 2.7 (1997-2002) 1997-2002 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser RZJ95 2.7 (1997-2002) 1997-2002 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser VZJ90 3.4 (1996-2002) 1996-2002 Front Brake Pads: DB1149; Disc Diameter [mm]: 319
Toyota Land Cruiser VZJ95 3.4 (1996-2003) 1996-2003 Front Brake Pads: DB1149; Disc Diameter [mm]: 319

Fitting and technical documents

Supply and fitting at DNA4x4

DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.

DNA4x4 on YouTube

Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.

Weight 7.10 kg
brand

DBA
product type

Brake Disc
dba range

4000 Series T3 Slotted
axle position

Front
disc diameter (mm)

319
thickness [mm]

22
overall height [mm]

70
centre bore [mm]

108
pitch circle diameter [mm]

140
disc ventilation

Kangaroo Paw
number of mounting holes

6
