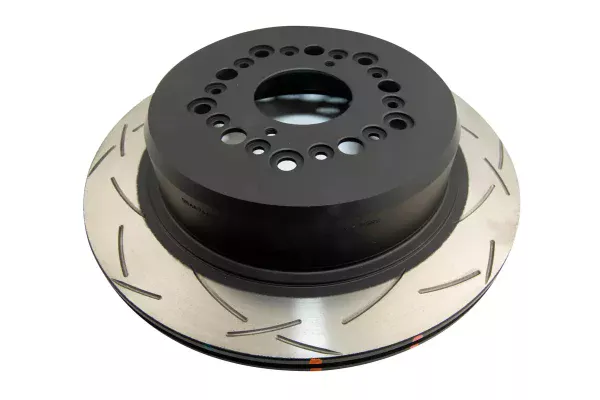

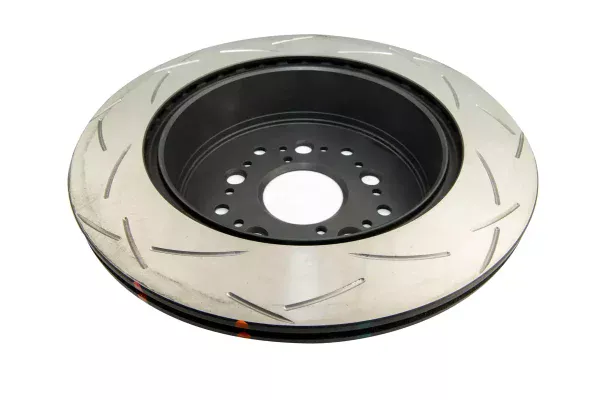

DBA 4000 Series T3 Slotted Rear Brake Disc 307 x 16mm for Lexus Aristo / Lexus GS300 & More
Availability: Usually in UK/EU stock£189.88 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Rear Brake Disc 307mm (DBA4746S). 307mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Rear Brake Disc 307mm (DBA4746S) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- High-carbon alloyed iron provides thermal capacity for repeated braking.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA4746S |
| Application position | Rear |
| Supplied quantity | 1 brake disc |
| Diameter [mm] | 307 |
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 5 |
| Centre bore [mm] | 62 |
| Minimum Thickness [mm] | 15 |
| Thickness [mm] | 16 |
| Overall height [mm] | 67 |
| Pitch circle diameter [mm] | 114.3 |
| DBA stage | Stage 4 |
| Range | 4000 Series T3 Slotted |
| Supplier-listed product weight [kg] | 5.60 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Lexus | Aristo | 3.0 Twin Turbo (1994-1997) | 1994-1997 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Lexus | GS300 | 3.0 (1991-1993) | 1991-1993 | Rear | Brake Pads: DB413; Disc Diameter [mm]: 307 |
| Lexus | GS300 | 3.0 (1993-1995) | 1993-1995 | Rear | Brake Pads: DB1396; Disc Diameter [mm]: 307 |
| Lexus | GS300 | 3.0 (1993-1995) | 1993-1995 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Lexus | LS400 (XF10) | 4.0 (1993-1995) | 1993-1995 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Lexus | LS400 (XF20) | 4.0 (1995-2000) | 1995-2000 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Lexus | SC400 | 4.0 (1994-2000) | 1994-2000 | Rear | Disc Diameter [mm]: 307 |
| Lexus | Soarer JZZ30 | 2.5 Turbo (1997-2000) | 1997-2000 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Lexus | Soarer JZZ30 | 2.5 Twin Turbo GT-TL (1991-1996) | 1991-1996 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Toyota | Aristo JZS147 | 3.0 Twin Turbo Vertex (1993-1997) | 1993-1997 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Toyota | Soarer JZZ30 | 2.5 Turbo (1997-2000) | 1997-2000 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Toyota | Soarer JZZ30 | 2.5 Twin Turbo GT-TL (1991-1996) | 1991-1996 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
| Toyota | Supra (Not UK) | 3.0 Twin Turbo (1993-2002) | 1993-2002 | Rear | Brake Pads: DB1420; Disc Diameter [mm]: 307 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 5.60 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc |
| dba range | 4000 Series T3 Slotted |
| axle position | Rear |
| disc diameter (mm) | 307 |
| thickness [mm] | 16 |
| overall height [mm] | 67 |
| centre bore [mm] | 62 |
| pitch circle diameter [mm] | 114.3 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 5 |
