DBA 4000 Series T3 Slotted Rear Disc & Xtreme Performance Pad Kit 345 x 24mm for BMW 1 Series (F20) M135 / BMW 1 Series (F20) M140 & More
Availability: Usually in UK/EU stock£450.93 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Rear Disc & Xtreme Performance Pad Kit 345mm (DBA42677S-15127XP). 345mm diameter; 2 × DBA42677S, 1 × DB15127XP. Supplied as 1 kit. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Rear Disc & Xtreme Performance Pad Kit 345mm (DBA42677S-15127XP) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
- Includes Xtreme Performance pads for applications requiring a higher-friction compound.
- Disc and pad component references are listed below so you can check the complete brake setup.
Kit contents
- 2 × DBA42677S — brake disc
- 1 × DB15127XP — brake pad set
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA42677S-15127XP |
| Application position | Rear |
| Supplied quantity | 1 kit |
| Supplier-listed product weight [kg] | 27.20 |
Disc specifications — DBA42677S
| Diameter [mm] | 345 |
|---|---|
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 5 |
| Centre bore [mm] | 75 |
| Minimum Thickness [mm] | 22.4 |
| Thickness [mm] | 24 |
| Overall height [mm] | 66.1 |
| Pitch circle diameter [mm] | 120 |
| DBA stage | Stage 4 |
| Range | 4000 Series T3 Slotted |

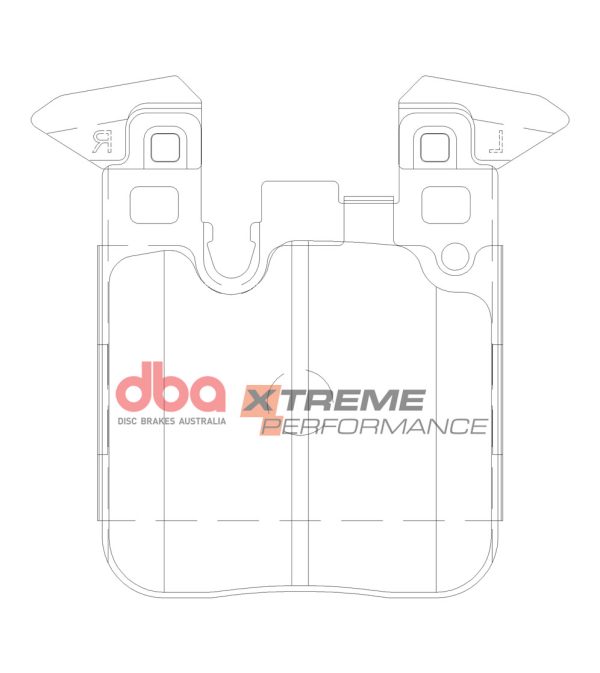

Pad specifications — DB15127XP
| Axle | Rear |
|---|---|
| Width [mm] | 73.7 |
| Overall height [mm] | 88.1 |
| Pad thickness [mm] | 15.8 |
| FMSI / WVA / OEM | 8885-D1656 |
| Range | Xtreme Performance |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| BMW | 1 Series (F20) M135 | 3.0 Turbo 320BHP (2012-2017) | 2012-2017 | Rear | Match the technical specifications |
| BMW | 1 Series (F20) M140 | 3.0 Turbo 340BHP (2016-2019) | 2016-2019 | Rear | Match the technical specifications |
| BMW | 1 Series (F21) M135 | 3.0 Turbo 320BHP (2012-2017) | 2012-2017 | Rear | Match the technical specifications |
| BMW | 1 Series (F21) M140 | 3.0 Turbo 340BHP (2016-2019) | 2016-2019 | Rear | Match the technical specifications |
| BMW | 1 Series (xDrive F20) M135 | 3.0 Turbo 320BHP (2012-2017) | 2012-2017 | Rear | Match the technical specifications |
| BMW | 1 Series (xDrive F20) M140 | 3.0 Turbo 340BHP (2016-2019) | 2016-2019 | Rear | Match the technical specifications |
| BMW | 1 Series (xDrive F21) M135 | 3.0 Turbo 320BHP (2012-2017) | 2012-2017 | Rear | Match the technical specifications |
| BMW | 1 Series (xDrive F21) M140 | 3.0 Turbo 340BHP (2016-2019) | 2016-2019 | Rear | Match the technical specifications |
| BMW | 2 Series (F22 Coupe) 228 | 2.0 Turbo 240BHP (2014-2016) | 2014-2016 | Rear | Match the technical specifications |
| BMW | 2 Series (F22 Coupe) 230 | 2.0 Turbo 252BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 2 Series (F22 Coupe) M235 | 3.0 Turbo 326BHP (2013-2016) | 2013-2016 | Rear | Match the technical specifications |
| BMW | 2 Series (F22 Coupe) M240 | 3.0 Turbo 340BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 2 Series (F23 Convertible) 230 | 2.0 Turbo 252BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 2 Series (F23 Convertible) M235 | 3.0 Turbo 326BHP (2014-2016) | 2014-2016 | Rear | Match the technical specifications |
| BMW | 2 Series (F23 Convertible) M240 | 3.0 Turbo 340BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 2 Series (xDrive F22 Coupe) M235 | 3.0 Turbo 326BHP (2013-2016) | 2013-2016 | Rear | Match the technical specifications |
| BMW | 2 Series (xDrive F22 Coupe) M240 | 3.0 Turbo 340BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 2 Series (xDrive F23 Convertible) M235 | 3.0 Turbo 326BHP (2014-2016) | 2014-2016 | Rear | Match the technical specifications |
| BMW | 2 Series (xDrive F23 Convertible) M240 | 3.0 Turbo 340BHP (2016-) | 2016- | Rear | Match the technical specifications |
| BMW | 3 Series (F30) 320 | 2.0 TD (2012-2019) | 2012-2019 | Rear | Match the technical specifications |
| BMW | 3 Series (F30) 320 | 2.0 Turbo (2012-2019) | 2012-2019 | Rear | Match the technical specifications |
| BMW | 3 Series (F30) 325 | 2.0 TD (2013-2019) | 2013-2019 | Rear | Match the technical specifications |
| BMW | 3 Series (F31) 320 | 2.0 TD (2012-2019) | 2012-2019 | Rear | Match the technical specifications |
| BMW | 3 Series (F31) 320 | 2.0 Turbo (2012-2019) | 2012-2019 | Rear | Match the technical specifications |
| BMW | 3 Series (F31) 325 | 2.0 TD (2013-2019) | 2013-2019 | Rear | Match the technical specifications |
| BMW | 4 Series (F32 Coupe) 420 | 2.0 TD 181BHP (2013-2015) | 2013-2015 | Rear | Match the technical specifications |
| BMW | 4 Series (F32 Coupe) 420 | 2.0 TD 190BHP (2015-2020) | 2015-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (F32 Coupe) 420 | 2.0 Turbo 181BHP (2013-2020) | 2013-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (F32 Coupe) 425 | 2.0 TD 215BHP (2014-2020) | 2014-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (F36 Gran Coupe) 420 | 2.0 TD 181BHP (2014-2015) | 2014-2015 | Rear | Match the technical specifications |
| BMW | 4 Series (F36 Gran Coupe) 420 | 2.0 TD 190BHP (2015-2020) | 2015-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (xDrive F32 Coupe) 420 | 2.0 TD 181BHP (2014-2015) | 2014-2015 | Rear | Match the technical specifications |
| BMW | 4 Series (xDrive F32 Coupe) 420 | 2.0 TD 190BHP (2015-2020) | 2015-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (xDrive F32 Coupe) 420 | 2.0 Turbo 181BHP (2013-2020) | 2013-2020 | Rear | Match the technical specifications |
| BMW | 4 Series (xDrive F36 Gran Coupe) 420 | 2.0 TD 181BHP (2014-2015) | 2014-2015 | Rear | Match the technical specifications |
| BMW | 4 Series (xDrive F36 Gran Coupe) 420 | 2.0 TD 190BHP (2015-2020) | 2015-2020 | Rear | Match the technical specifications |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 27.20 kg |
|---|---|
| brand | DBA |
| product type | Disc & Xtreme Performance Pad Kit |
| dba range | 4000 Series T3 Slotted |
| axle position | Rear |
| disc diameter (mm) | 345 |
| thickness [mm] | 24 |
| overall height [mm] | 66.1 |
| centre bore [mm] | 75 |
| pitch circle diameter [mm] | 120 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 5 |
