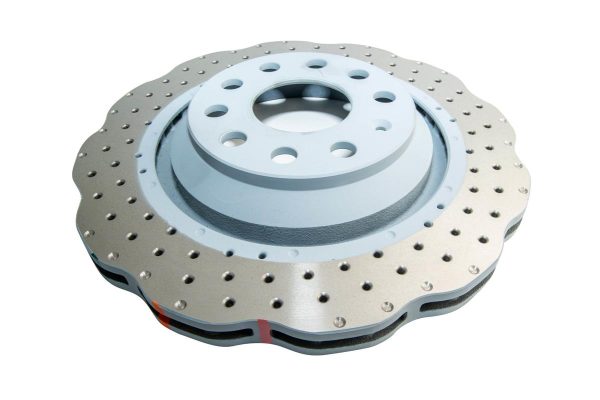

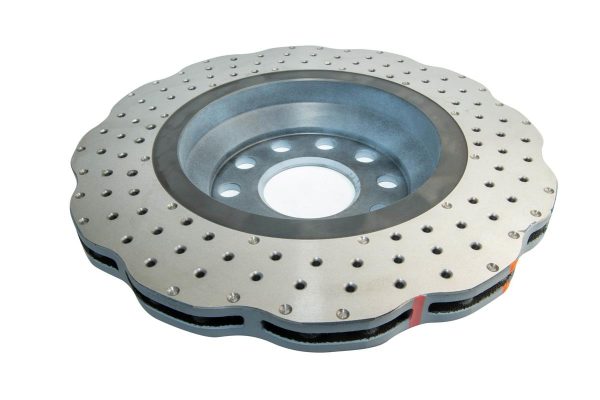

DBA 4000 Series Cross-Drilled & Dimpled Rear Brake Disc 310 x 22mm for Audi A3 8Y / Audi A3 quattro 8P & More
Availability: Usually in UK/EU stock£238.96 Incl. VAT (UK only)
DBA 4000 Series Cross-Drilled & Dimpled Rear Brake Disc 310mm (DBA42809WSLVXD). 310mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series Cross-Drilled & Dimpled Rear Brake Disc 310mm (DBA42809WSLVXD) is listed for the vehicle applications below.
Product features
- The drilled friction-surface design provides additional paths for pad dust and gases.
- High-carbon alloyed iron provides thermal capacity for repeated braking.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
Application restriction: Cross-drilled discs are not recommended for heavy off-road or track-day use.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA42809WSLVXD |
| Application position | Rear |
| Supplied quantity | 1 brake disc |
| Diameter [mm] | 310 |
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 5 |
| Centre bore [mm] | 65 |
| Minimum Thickness [mm] | 20 |
| Thickness [mm] | 22 |
| Overall height [mm] | 48.5 |
| Pitch circle diameter [mm] | 112 |
| DBA stage | Stage 2 |
| Range | 4000 Series Cross Drilled & Dimpled |
| Supplier-listed product weight [kg] | 7.10 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Audi | A3 8Y | 1.4 Turbo hybrid 40 204BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | A3 8Y | 1.4 Turbo hybrid 45 245BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | A3 quattro 8P | 3.2 (2003-2009) | 2003-2009 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | A3 quattro 8Y | 1.4 Turbo hybrid 45 245BHP (2020-2022) | 2020-2022 | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | A3 quattro 8Y | 1.4 Turbo hybrid 45 245BHP (2022-) | 2022- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | A3 quattro 8Y | 2.0 Turbo 40 200BHP (2020-2022) | 2020-2022 | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | A3 quattro 8Y | 2.0 Turbo 40 200BHP (2023-) | 2023- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | RS3 8P | 2.5 Turbo 335BHP (2011-2013) | 2011-2013 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | RS3 8V | 2.5 Turbo 362BHP (2015-2016) | 2015-2016 | Rear | Brake Pads: DB15006; Disc Diameter [mm]: 310 |
| Audi | RS3 8V | 2.5 Turbo 400BHP Hatchback (2017-2020) | 2017-2020 | Rear | Brake Pads: DB15006; Disc Diameter [mm]: 310 |
| Audi | RS3 8V | 2.5 Turbo 400BHP Sedan (2017-2020) | 2017-2020 | Rear | Brake Pads: DB15006; Disc Diameter [mm]: 310 |
| Audi | RS3 8Y | 2.5 Turbo 400BHP (2021-2024) | 2021-2024 | Rear | Brake Pads: DB15006; PR: 1EE, 1KX; Disc Diameter [mm]: 310 |
| Audi | RS3 8Y | 2.5 Turbo 400BHP (2021-2024) | 2021-2024 | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KD; Disc Diameter [mm]: 310 |
| Audi | RS3 8Y | 2.5 Turbo 400BHP (2025-) | 2025- | Rear | Brake Pads: DB15006; PR: 1EE, 1KX; Disc Diameter [mm]: 310 |
| Audi | RS3 8Y | 2.5 Turbo 400BHP (2025-) | 2025- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KD; Disc Diameter [mm]: 310 |
| Audi | RSQ3 8U | 2.5 Turbo 310BHP (2013-2014) | 2013-2014 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | RSQ3 8U | 2.5 Turbo 340BHP (2015-2018) | 2015-2018 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | RSQ3 8U | 2.5 Turbo Performance 367BHP (2016-2018) | 2016-2018 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | RSQ3 F3 | 2.5 Turbo 400BHP (2019-) | 2019- | Rear | Brake Pads: DB15006; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | S3 8P | 2.0 Turbo 265BHP PR-1LK (2006-2012) | 2006-2012 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | S3 8P | 2.0 Turbo 265BHP PR-1ZK (2006-2012) | 2006-2012 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Audi | S3 8V | 2.0 Turbo 280BHP (2013-2016) | 2013-2016 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | S3 8V | 2.0 Turbo 300BHP (2013-2016) | 2013-2016 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | S3 8V | 2.0 Turbo 310BHP (2016-2020) | 2016-2020 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | S3 8Y | 2.0 Turbo 310BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KJ, 1KY; Disc Diameter [mm]: 310 |
| Audi | TT 8S | 2.0 Turbo 230BHP (2014-) | 2014- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | TT quattro 8S | 2.0 Turbo 230BHP (2014-) | 2014- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | TTRS quattro 8S | 2.5 Turbo 400BHP (2016-) | 2016- | Rear | Brake Pads: DB15006; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | TTS quattro 8S | 2.0 Turbo 310BHP (2014-) | 2014- | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Audi | TTS quattro 8S | 2.0 Turbo 310BHP (2015-) | 2015- | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Cupra | Ateca | 1.5 Turbo 150BHP (2023-) | 2023- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Ateca | 2.0 Turbo 190BHP (2023-) | 2023- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Ateca | 2.0 Turbo 296BHP (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 1.4 Turbo and Electric 242BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 1.5 Turbo hybrid 272BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 2.0 hybrid 330BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 2.0 Turbo 310BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 2.0 Turbo and Electric 245BHP (2021-) | 2021- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 2.0 Turbo VZ 310BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Formentor | 2.5 Turbo VZ5 390BHP (2022-) | 2022- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 1.4 Turbo and Electric 245BHP (2020-) | 2020- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 1.5 Turbo hybrid 272BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 2.0 Turbo 300BHP (2020-2022) | 2020-2022 | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 2.0 Turbo 300BHP (2022-) | 2022- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 2.0 Turbo 300BHP (2022-) | 2022- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Leon | 2.0 Turbo hybrid 330BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KY; Disc Diameter [mm]: 310 |
| Cupra | Terramar | 1.5 Turbo 150BHP (2025-) | 2025- | Rear | Brake Pads: TBA; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Cupra | Terramar | 1.5 Turbo e-hybrid 204BHP (2025-) | 2025- | Rear | Brake Pads: TBA; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Cupra | Terramar | 1.5 Turbo e-hybrid 272BHP (2025-) | 2025- | Rear | Brake Pads: TBA; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Cupra | Terramar | 2.0 Turbo 204BHP (2025-) | 2025- | Rear | Brake Pads: TBA; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Cupra | Terramar | 2.0 Turbo 265BHP (2025-) | 2025- | Rear | Brake Pads: TBA; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 1.8 Turbo 180BHP (2013-2018) | 2013-2018 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 2.0 Turbo Cupra 265BHP (2014-2016) | 2014-2016 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 2.0 Turbo Cupra 280BHP (2014-2016) | 2014-2016 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 2.0 Turbo Cupra 290BHP (2015-2017) | 2015-2017 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 2.0 Turbo Cupra 300BHP (2017-2020) | 2017-2020 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Seat | Leon (5F) | 2.0 Turbo Cupra R 310BHP (2018-2020) | 2018-2020 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Skoda | Kodiaq | 2.0 TD RS 239BHP 4WD (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Skoda | Octavia (5E) | 2.0 Turbo RS 245BHP (2017-2020) | 2017-2020 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Octavia (5E) | 2.0 Turbo vRS 245BHP (2017-2020) | 2017-2020 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 1.4 Turbo and Electric 245BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 1.4 Turbo and Electric VRS 245BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo RS 200BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo RS 245BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo RS 265BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo RS 4×4 200BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo VRS 200BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo VRS 245BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo VRS 265BHP (2024-) | 2024- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Octavia (NX) | 2.0 Turbo VRS 4×4 200BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 1.8 Turbo 150BHP 4WD (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 1.8 Turbo 160BHP 4WD (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 2.0 TD 170BHP 4WD (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 2.0 Turbo 200BHP (2010-2015) | 2010-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 3.6 4WD 260BHP (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3T) | 3.6 4WD 260BHP (2014-2015) | 2014-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Skoda | Superb (3V) | 2.0 Turbo 280BHP 4×4 Vented rear discs (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 1.5 Turbo 150BHP (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 TD 150BHP (2017-) | 2017- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 TD 190BHP (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 TD 190BHP 4motion (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 Turbo 190BHP (2018-) | 2018- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 Turbo 280BHP 4motion (2017-) | 2017- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Arteon | 2.0 Twin TD 240BHP (2017-) | 2017- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | CC | 2.0 Turbo (2012-2017) | 2012-2017 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | CC | 3.6 (2012-2017) | 2012-2017 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Eos | 3.2 250BHP (2006-2009) | 2006-2009 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Eos | 3.6 260BHP (2009-2011) | 2009-2011 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk5) | 3.2 R32 250BHP (2005-2009) | 2005-2009 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk6) | 2.0 Turbo R 270BHP PR-1LK (2009-2013) | 2009-2013 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk6) | 2.0 Turbo R 270BHP PR-1LM (2009-2013) | 2009-2013 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk6) | 2.0 Turbo R 270BHP PR-1ZK (2009-2013) | 2009-2013 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) | 2.0 Turbo R 280BHP (2013-2019) | 2013-2019 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) | 2.0 Turbo R 300BHP (2013-2019) | 2013-2019 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) | 2.0 Turbo R 310BHP (2017-2019) | 2017-2019 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) Clubsport | 2.0 Turbo GTi 265BHP (2016-2019) | 2016-2019 | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) Clubsport S | 2.0 Turbo GTi 310BHP (2016-2019) | 2016-2019 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) Performance Package | 2.0 Turbo GTi 230BHP (2013-2017) | 2013-2017 | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) Performance Package | 2.0 Turbo GTi 247BHP (2017-2019) | 2017-2019 | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk7) TCR | 2.0 Turbo GTi 290BHP (2019) | 2019 | Rear | Brake Pads: DB2415; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk8) | 2.0 Turbo 200BHP (2019-) | 2019- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk8) | 2.0 Turbo GTI 245BHP (2019-) | 2019- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk8) | 2.0 Turbo GTI 290BHP (2019-) | 2019- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk8) | 2.0 Turbo GTI Clubsport 300BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Volkswagen | Golf (Mk8) | 2.0 Turbo R 320BHP (2020-) | 2020- | Rear | Brake Pads: DB8850; Brake Caliper: ATE; for PR: 1KF, 1KJ, 1KY, 1KZ; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B6) | 2.0 Turbo 200BHP (2005-2010) | 2005-2010 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B6) | 3.2 247BHP From chassis code 3C8 (2005-2010) | 2005-2010 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B6) | 3.2 247BHP To chassis code 3C7 (2005-2010) | 2005-2010 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B6) | 3.6 From chassis code 3C8 (2007-2010) | 2007-2010 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B6) | 3.6 To chassis code 3C7 (2007-2010) | 2007-2010 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B7) | 2.0 Turbo 210BHP (2011-2014) | 2011-2014 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B7) | 3.6 4Motion (2012-2014) | 2012-2014 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B7) | 3.6 From chassis code 3C8 (2010-2012) | 2010-2012 | Rear | Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B7) | 3.6 To chassis code 3C7 (2010-2012) | 2010-2012 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B8) | 2.0 Turbo 220BHP (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B8) | 2.0 Turbo 280BHP 4Motion (2016-) | 2016- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat (B8) | 2.0 Twin TD 240BHP (2014-) | 2014- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack | 1.8 Turbo 160BHP (2012-2015) | 2012-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack | 2.0 TD 140BHP (2012-2015) | 2012-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack | 2.0 TD 170BHP (2012-2015) | 2012-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack | 2.0 TD 177BHP (2013-2015) | 2013-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack | 2.0 Turbo 207BHP (2012-2015) | 2012-2015 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack (3G) | 2.0 TD 184BHP (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack (3G) | 2.0 TD 190BHP (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack (3G) | 2.0 TD 240BHP (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat Alltrack (3G) | 2.0 Turbo 220BHP (2015-) | 2015- | Rear | Brake Pads: DB2384; Brake Caliper: ATE; Disc Diameter [mm]: 310 |
| Volkswagen | Passat CC | 2.0 Turbo (2008-2012) | 2008-2012 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Passat CC | 3.6 4Motion (2008-2012) | 2008-2012 | Rear | Brake Pads: DB1865; Brake Caliper: TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Scirocco | 2.0 Turbo R 265BHP (2009-2014) | 2009-2014 | Rear | Brake Pads: DB1865; Brake Caliper: Girling/TRW; Disc Diameter [mm]: 310 |
| Volkswagen | Scirocco | 2.0 Turbo R 276BHP (2014-2017) | 2014-2017 | Rear | Brake Pads: DB1865; Brake Caliper: Girling/TRW; Disc Diameter [mm]: 310 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 7.10 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc |
| dba range | 4000 Series Cross-Drilled & Dimpled |
| axle position | Rear |
| disc diameter (mm) | 310 |
| thickness [mm] | 22 |
| overall height [mm] | 48.5 |
| centre bore [mm] | 65 |
| pitch circle diameter [mm] | 112 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 5 |
Be the first to review “DBA 4000 Series Cross-Drilled & Dimpled Rear Brake Disc 310 x 22mm for Audi A3 8Y / Audi A3 quattro 8P & More”
Items are usually dispatched within 2-3 business days delivery, but may take longer on custom made products. Delivery may take several weeks for products that aren't in UK or EU stock, but we will contact you with a delivery estimate if this applies to you, once you have ordered.
Related products
-
STEDI 2011+ VW Amarok 21.5-inch ST3K Slim LED Lightbar Bundle
£328.90 Incl. VAT (UK only) -
Volkswagen Amarok 2010-2017 Heavy Duty Side Steps (Black)
£393.24 Incl. VAT (UK only) -
Tent Roll Bar
£489.99 Incl. VAT (UK only) -
Volkswagen Amarok 2017+ Heavy Duty Side Steps (Black)
£393.24 Incl. VAT (UK only)
Reviews
There are no reviews yet.
