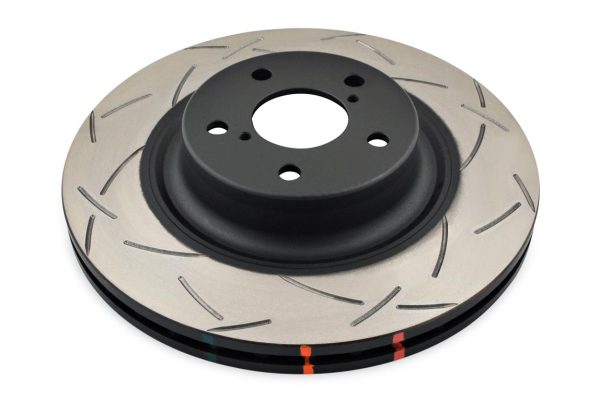

DBA 4000 Series T3 Slotted Front Brake Disc 294 x 24mm for Subaru BRZ / Subaru Forester & More
DBA 4000 Series T3 Slotted Front Brake Disc 294 x 24mm for Subaru BRZ / Subaru Forester & More
  1. DBA 4000 Series T3 Slotted Front Brake Disc 294 x 24mm for Subaru BRZ / Subaru Forester & More
  2. DBA 4000 Series T3 Slotted Front Brake Disc 294 x 24mm for Subaru BRZ / Subaru Forester & More

DBA 4000 Series T3 Slotted Front Brake Disc 294 x 24mm for Subaru BRZ / Subaru Forester & More

Availability: Usually in UK/EU stock

£175.89 Incl. VAT (UK only)

DBA 4000 Series T3 Slotted Front Brake Disc 294mm (DBA4650S). 294mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.

SKU: DBA4650S Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , Brand:
Guaranteed Safe Checkout

DBA 4000 Series T3 Slotted Front Brake Disc 294mm (DBA4650S) is listed for the vehicle applications below.

Product features

  • T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
  • High-carbon alloyed iron provides thermal capacity for repeated braking.
  • DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
  • Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.

Technical specifications

Brand DBA (Disc Brakes Australia)
Part number DBA4650S
Application position Front
Supplied quantity 1 brake disc
Diameter [mm] 294
Disc ventilation Kangaroo Paw
Number of mounting holes 5
Centre bore [mm] 58
Minimum Thickness [mm] 22
Thickness [mm] 24
Overall height [mm] 57
Pitch circle diameter [mm] 100
DBA stage Stage 4
ECE R90 number E11*90R02/06*60536*00
Range 4000 Series T3 Slotted
Supplier-listed product weight [kg] 7.79

Vehicle compatibility

Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.

Make Model / chassis Engine / variant Years Axle Brake-system notes
Subaru BRZ 2.0 200BHP (2012-2022) 2012-2022 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.0 150BHP (2013-2018) 2013-2018 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.0 TD (2008-2013) 2008-2013 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.0 TD 147BHP (2013-2018) 2013-2018 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.5 (2003-2004) 2003-2004 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.5 (2004-2008) 2004-2008 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester 2.5 Turbo (2004-2008) 2004-2008 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester SG5 2.0 Turbo (2002-2003) 2002-2003 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Forester SG5 2.0 Turbo (2003-2008) 2003-2008 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Impreza 2.0 TD (2009-2011) 2009-2011 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Impreza 2.0 TD (2011-2012) 2011-2012 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Impreza 2.0 Turbo Import (1998-2002) 1998-2002 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Impreza 2.0 Turbo UK (1998-2002) 1998-2002 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Impreza 2.0 Turbo WRX Import 190mm handbrake shoes (2001-2005) 2001-2005 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Impreza 2.0 Turbo WRX UK 170mm handbrake shoes (2001-2005) 2001-2005 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Impreza 2.5 Turbo WRX (2005-2007) 2005-2007 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Impreza 2.5 Turbo WRX (2007-2008) 2007-2008 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Impreza 2.5 Turbo WRX-S (2008-2012) 2008-2012 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Impreza GB270 2.5 Turbo (2007-2008) 2007-2008 Front Brake Pads: DB1170; Brake Caliper: Sumitomo; Disc Diameter [mm]: 294
Subaru Legacy 2.5 156BHP (1999-2003) 1999-2003 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy 2.5 165BHP (2003-2009) 2003-2009 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy 2.5 167BHP (2009-2014) 2009-2014 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy 2.5 173BHP (2007-2009) 2007-2009 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy 3.0 209BHP (2000-2003) 2000-2003 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy BE5 2.0 Twin Turbo 280BHP (1999-2003) 1999-2003 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy BG5 2.0 Twin Turbo (1996-1999) 1996-1999 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy BH5 2.0 Twin Turbo GT-B 260BHP (1999-2003) 1999-2003 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy BH5 2.0 Twin Turbo GT-B 280BHP (1999-2003) 1999-2003 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy BLD 2.0 TD 150BHP (2008-2010) 2008-2010 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy BPD 2.0 TD 150BHP (2008-2010) 2008-2010 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy BRD 2.0 TD 150BHP (2009-2014) 2009-2014 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Legacy Outback 2.5 156BHP (1999-2004) 1999-2004 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Legacy Outback 3.0 209BHP (2000-2004) 2000-2004 Front Brake Pads: DB1342; Disc Diameter [mm]: 294
Subaru Outback 2.0 150BHP (2009-2014) 2009-2014 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 2.0 TD 150BHP (2008-2010) 2008-2010 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 2.0 TD 150BHP (2009-2014) 2009-2014 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 2.5 163BHP (2003-2005) 2003-2005 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 2.5 165BHP (2009-2014) 2009-2014 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 2.5 173BHP (2006-2009) 2006-2009 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru Outback 3.0 245BHP (2003-2010) 2003-2010 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru XV 1.6 (2012-2017) 2012-2017 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru XV 2.0 (2012-2017) 2012-2017 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Subaru XV 2.0 TD (2012-2017) 2012-2017 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294
Toyota GR86 2.4 234HP (2021-) 2021- Front Brake Pads: DB1491; Brake Caliper: Brembo; Disc Diameter [mm]: 294
Toyota GT86 2.0 200BHP (2012-2022) 2012-2022 Front Brake Pads: DB1491; Brake Caliper: Tokico; Disc Diameter [mm]: 294

Fitting and technical documents

Supply and fitting at DNA4x4

DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.

DNA4x4 on YouTube

Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.

Weight 7.79 kg
brand

DBA
product type

Brake Disc
dba range

4000 Series T3 Slotted
axle position

Front
disc diameter (mm)

294
thickness [mm]

24
overall height [mm]

57
centre bore [mm]

58
pitch circle diameter [mm]

100
disc ventilation

Kangaroo Paw
number of mounting holes

5
