DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 294 x 24mm for Subaru BRZ / Subaru Forester & More
Availability: Usually in UK/EU stock£459.68 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 294mm (DBA4650S-1491XP). 294mm diameter; 2 × DBA4650S, 1 × DB1491XP. Supplied as 1 kit. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 294mm (DBA4650S-1491XP) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
- Includes Xtreme Performance pads for applications requiring a higher-friction compound.
- Disc and pad component references are listed below so you can check the complete brake setup.
Kit contents
- 2 × DBA4650S — brake disc
- 1 × DB1491XP — brake pad set
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA4650S-1491XP |
| Application position | Front |
| Supplied quantity | 1 kit |
| Supplier-listed product weight [kg] | 17.43 |

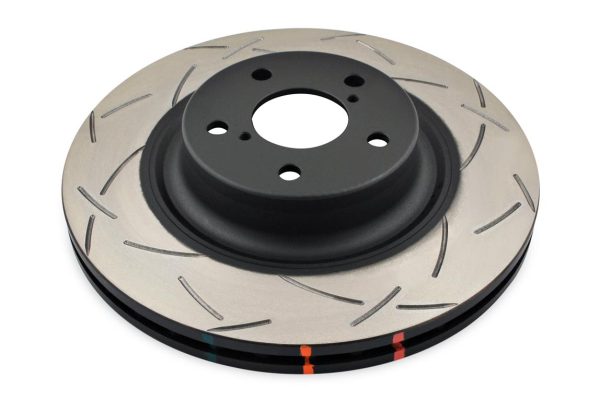

Disc specifications — DBA4650S
| Diameter [mm] | 294 |
|---|---|
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 5 |
| Centre bore [mm] | 58 |
| Minimum Thickness [mm] | 22 |
| Thickness [mm] | 24 |
| Overall height [mm] | 57 |
| Pitch circle diameter [mm] | 100 |
| DBA stage | Stage 4 |
| ECE R90 number | E11*90R02/06*60536*00 |
| Range | 4000 Series T3 Slotted |

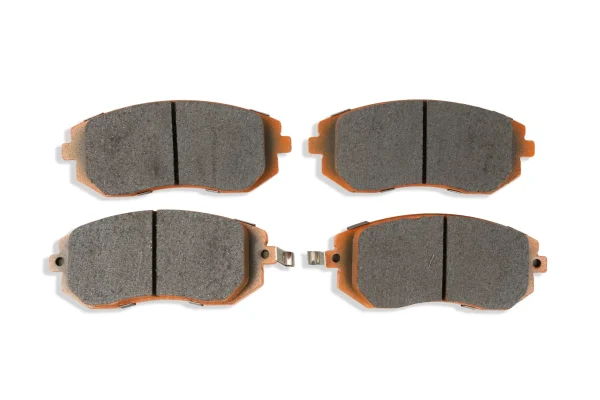

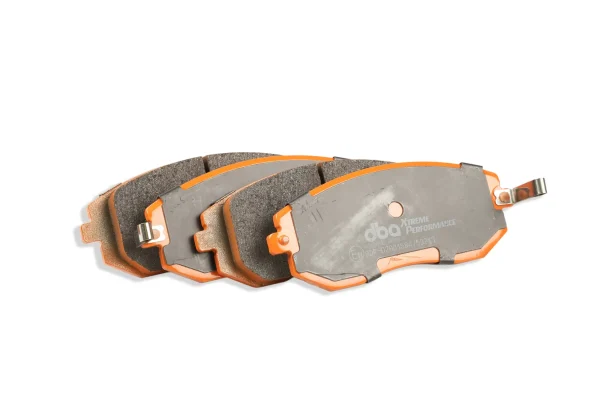

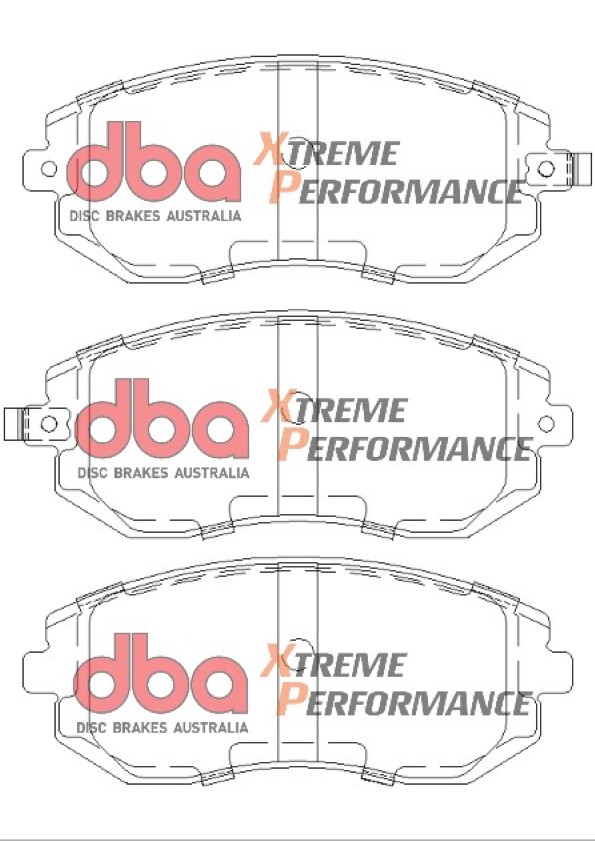

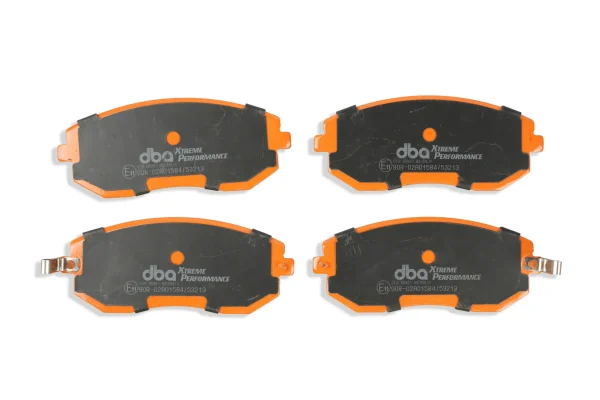

Pad specifications — DB1491XP
| Width [mm] | 137.1 |
|---|---|
| Overall height [mm] | 56.8 |
| Pad thickness [mm] | 16.8 |
| FMSI reference | 7830-D929 |
| OE reference | 26296-FE020 |
| Axle | Front |
| ECE R90 number | E11 R90-02A01584/53213 |
| Range | Xtreme Performance |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Subaru | BRZ | 2.0 200BHP (2012-2022) | 2012-2022 | Front | Match the technical specifications |
| Subaru | Forester | 2.0 150BHP (2013-2018) | 2013-2018 | Front | Match the technical specifications |
| Subaru | Forester | 2.0 TD (2008-2013) | 2008-2013 | Front | Match the technical specifications |
| Subaru | Forester | 2.0 TD 147BHP (2013-2018) | 2013-2018 | Front | Match the technical specifications |
| Subaru | Forester | 2.5 (2003-2004) | 2003-2004 | Front | Match the technical specifications |
| Subaru | Forester | 2.5 (2004-2008) | 2004-2008 | Front | Match the technical specifications |
| Subaru | Forester | 2.5 Turbo (2004-2008) | 2004-2008 | Front | Match the technical specifications |
| Subaru | Forester SG5 | 2.0 Turbo (2002-2003) | 2002-2003 | Front | Match the technical specifications |
| Subaru | Forester SG5 | 2.0 Turbo (2003-2008) | 2003-2008 | Front | Match the technical specifications |
| Subaru | Impreza | 2.0 TD (2009-2011) | 2009-2011 | Front | Match the technical specifications |
| Subaru | Impreza | 2.0 TD (2011-2012) | 2011-2012 | Front | Match the technical specifications |
| Subaru | Impreza | 2.5 Turbo WRX (2007-2008) | 2007-2008 | Front | Match the technical specifications |
| Subaru | Impreza | 2.5 Turbo WRX-S (2008-2012) | 2008-2012 | Front | Match the technical specifications |
| Subaru | Legacy | 2.5 165BHP (2003-2009) | 2003-2009 | Front | Match the technical specifications |
| Subaru | Legacy | 2.5 167BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Subaru | Legacy | 2.5 173BHP (2007-2009) | 2007-2009 | Front | Match the technical specifications |
| Subaru | Legacy BLD | 2.0 TD 150BHP (2008-2010) | 2008-2010 | Front | Match the technical specifications |
| Subaru | Legacy BPD | 2.0 TD 150BHP (2008-2010) | 2008-2010 | Front | Match the technical specifications |
| Subaru | Legacy BRD | 2.0 TD 150BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Subaru | Outback | 2.0 150BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Subaru | Outback | 2.0 TD 150BHP (2008-2010) | 2008-2010 | Front | Match the technical specifications |
| Subaru | Outback | 2.0 TD 150BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Subaru | Outback | 2.5 163BHP (2003-2005) | 2003-2005 | Front | Match the technical specifications |
| Subaru | Outback | 2.5 165BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Subaru | Outback | 2.5 173BHP (2006-2009) | 2006-2009 | Front | Match the technical specifications |
| Subaru | Outback | 3.0 245BHP (2003-2010) | 2003-2010 | Front | Match the technical specifications |
| Subaru | XV | 1.6 (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Subaru | XV | 2.0 (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Subaru | XV | 2.0 TD (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Toyota | GR86 | 2.4 234HP (2021-) | 2021- | Front | Match the technical specifications |
| Toyota | GT86 | 2.0 200BHP (2012-2022) | 2012-2022 | Front | Match the technical specifications |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 17.43 kg |
|---|---|
| brand | DBA |
| product type | Disc & Xtreme Performance Pad Kit |
| dba range | 4000 Series T3 Slotted |
| axle position | Front |
| disc diameter (mm) | 294 |
| thickness [mm] | 24 |
| overall height [mm] | 57 |
| centre bore [mm] | 58 |
| pitch circle diameter [mm] | 100 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 5 |
