DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 312 x 25mm for Audi A1 quattro 8X / Audi A3 8P & More
Availability: Usually in UK/EU stock£434.80 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 312mm (DBA42806S-1849XP). 312mm diameter; 2 × DBA42806S, 1 × DB1849XP. Supplied as 1 kit. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 312mm (DBA42806S-1849XP) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
- Includes Xtreme Performance pads for applications requiring a higher-friction compound.
- Disc and pad component references are listed below so you can check the complete brake setup.
Kit contents
- 2 × DBA42806S — brake disc
- 1 × DB1849XP — brake pad set
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA42806S-1849XP |
| Application position | Front |
| Supplied quantity | 1 kit |
| Supplier-listed product weight [kg] | 20.25 |

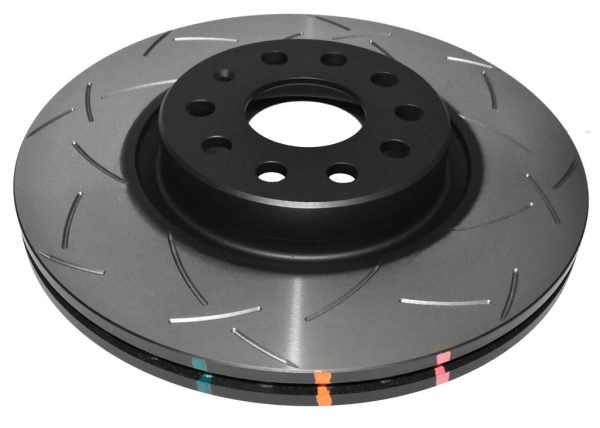

Disc specifications — DBA42806S
| Diameter [mm] | 312 |
|---|---|
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 5 |
| Centre bore [mm] | 65 |
| Minimum Thickness [mm] | 23 |
| Thickness [mm] | 25 |
| Overall height [mm] | 49.8 |
| Pitch circle diameter [mm] | 112 |
| DBA stage | Stage 4 |
| ECE R90 number | E11*90R02/06*60529*00 |
| Range | 4000 Series T3 Slotted |

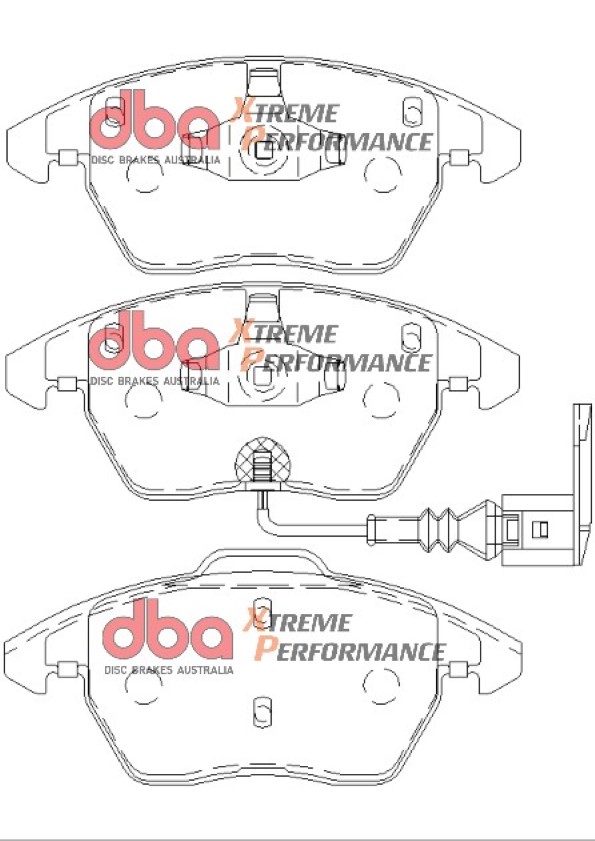

Pad specifications — DB1849XP
| Width [mm] | 155.2+156.5 |
|---|---|
| Overall height [mm] | 66+71.5 |
| Pad thickness [mm] | 19.3 |
| FMSI reference | 8212-D1107 |
| OE reference | 1K0698151E |
| Axle | Front |
| ECE R90 number | E11 R90-02A01584/49927 |
| Range | Xtreme Performance |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Audi | A1 quattro 8X | 2.0 Turbo 256BHP (2012-2018) | 2012-2018 | Front | Match the technical specifications |
| Audi | A3 8P | 2.0 TD 140BHP (2003-2013) | 2003-2013 | Front | Match the technical specifications |
| Audi | A3 8P | 2.0 TD 170BHP (2006-2013) | 2006-2013 | Front | Match the technical specifications |
| Audi | A3 8P | 2.0 Turbo (2004-2012) | 2004-2012 | Front | Match the technical specifications |
| Audi | A3 8P | 2.0 Turbo (2009-2012) | 2009-2012 | Front | Match the technical specifications |
| Audi | A3 Cabriolet 8P | 2.0 Turbo (2008-2013) | 2008-2013 | Front | Match the technical specifications |
| Audi | A3 quattro 8P | 2.0 TD 140BHP (2004-2007) | 2004-2007 | Front | Match the technical specifications |
| Audi | A3 quattro 8P | 2.0 TD 170BHP (2006-2013) | 2006-2013 | Front | Match the technical specifications |
| Audi | A3 quattro 8P | 2.0 TD 170BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Audi | A3 quattro 8P | 2.0 Turbo (2004-2012) | 2004-2012 | Front | Match the technical specifications |
| Audi | A3 quattro 8P | 2.0 Turbo (2009-2012) | 2009-2012 | Front | Match the technical specifications |
| Audi | Q3 8U | 1.4 Turbo 125BHP (2016-2018) | 2016-2018 | Front | Match the technical specifications |
| Audi | Q3 8U | 1.4 Turbo 150BHP (2014-2015) | 2014-2015 | Front | Match the technical specifications |
| Audi | Q3 8U | 1.4 Turbo 150BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 8U | 2.0 TD 140BHP (2011-2015) | 2011-2015 | Front | Match the technical specifications |
| Audi | Q3 8U | 2.0 TD 140BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 8U | 2.0 TD 177BHP (2013-2015) | 2013-2015 | Front | Match the technical specifications |
| Audi | Q3 8U | 2.0 TD 177BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 TD 140BHP (2012-2015) | 2012-2015 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 TD 140BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 TD 177BHP (2011-2015) | 2011-2015 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 TD 177BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 Turbo 170BHP (2011-2015) | 2011-2015 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 Turbo 170BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 Turbo 180BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 Turbo 211BHP (2011-2015) | 2011-2015 | Front | Match the technical specifications |
| Audi | Q3 quattro 8U | 2.0 Turbo 211BHP (2015-2018) | 2015-2018 | Front | Match the technical specifications |
| Audi | S1 8X | 2.0 Turbo 230BHP (PR-1LJ) 112 pcd (2014-2018) | 2014-2018 | Front | Match the technical specifications |
| Audi | TT 8J | 1.8 Turbo 160BHP (2007-2014) | 2007-2014 | Front | Match the technical specifications |
| Audi | TT 8J | 2.0 Turbo 200BHP (2006-2010) | 2006-2010 | Front | Match the technical specifications |
| Audi | TT 8J | 2.0 Turbo 211BHP (2008-2014) | 2008-2014 | Front | Match the technical specifications |
| Audi | TT quattro 8J | 2.0 TD 170BHP (2008-2014) | 2008-2014 | Front | Match the technical specifications |
| Audi | TT quattro 8J | 2.0 Turbo 200BHP (2006-2010) | 2006-2010 | Front | Match the technical specifications |
| Audi | TT quattro 8J | 2.0 Turbo 211BHP (2008-2014) | 2008-2014 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 1.4 Turbo 150BHP (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 1.8 Turbo 160BHP (2012-2020) | 2012-2020 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 2.0 TD 115BHP (2011-2015) | 2011-2015 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 2.0 TD 140BHP (2010-2017) | 2010-2017 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 2.0 TD 170BHP (2010-2016) | 2010-2016 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 2.0 TD 177BHP (2012-2020) | 2012-2020 | Front | Match the technical specifications |
| Seat | Alhambra (7N) | 2.0 Turbo 200BHP (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Seat | Altea | 1.8 Turbo (2006-2016) | 2006-2016 | Front | Match the technical specifications |
| Seat | Altea | 2.0 TD FR 170BHP (2006-2016) | 2006-2016 | Front | Match the technical specifications |
| Seat | Altea | 2.0 Turbo 211BHP (2010-2016) | 2010-2016 | Front | Match the technical specifications |
| Seat | Altea | 2.0 Turbo FR 200BHP (2005-2016) | 2005-2016 | Front | Match the technical specifications |
| Seat | Altea Freetrack | 1.6 TD (2007-2015) | 2007-2015 | Front | Match the technical specifications |
| Seat | Altea Freetrack | 2.0 TD (2007-2015) | 2007-2015 | Front | Match the technical specifications |
| Seat | Altea Freetrack | 2.0 Turbo (2007-2015) | 2007-2015 | Front | Match the technical specifications |
| Seat | Leon (1P) | 1.8 Turbo 160BHP (2005-2013) | 2005-2013 | Front | Match the technical specifications |
| Seat | Leon (1P) | 1.8 Turbo 160BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Seat | Leon (1P) | 2.0 150BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Seat | Leon (1P) | 2.0 TD FR 170BHP (2005-2013) | 2005-2013 | Front | Match the technical specifications |
| Seat | Leon (1P) | 2.0 Turbo 185BHP (2005-2006) | 2005-2006 | Front | Match the technical specifications |
| Seat | Leon (1P) | 2.0 Turbo FR 200BHP (2005-2009) | 2005-2009 | Front | Match the technical specifications |
| Seat | Leon (1P) | 2.0 Turbo FR 211BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Skoda | Octavia (1Z) | 2.0 TD RS 170BHP (2006-2013) | 2006-2013 | Front | Match the technical specifications |
| Skoda | Octavia (1Z) | 2.0 TD vRS 170BHP (2006-2013) | 2006-2013 | Front | Match the technical specifications |
| Skoda | Octavia (1Z) | 2.0 Turbo RS 200BHP (2005-2013) | 2005-2013 | Front | Match the technical specifications |
| Skoda | Octavia (1Z) | 2.0 Turbo vRS 200BHP (2005-2013) | 2005-2013 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 1.8 Turbo 150BHP (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 1.8 Turbo 150BHP 4WD (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 1.8 Turbo 160BHP (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 1.8 Turbo 160BHP 4WD (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 2.0 TD 140BHP (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 2.0 TD 140BHP 4WD (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 2.0 TD 170BHP (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 2.0 TD 170BHP 4WD (2008-2015) | 2008-2015 | Front | Match the technical specifications |
| Skoda | Superb (3T) | 2.0 Turbo 200BHP (2010-2015) | 2010-2015 | Front | Match the technical specifications |
| Skoda | Yeti | 2.0 TD 170BHP 4WD (2009-2015) | 2009-2015 | Front | Match the technical specifications |
| Volkswagen | Beetle (5C) | 1.4 Turbo 150BHP (2014-2019) | 2014-2019 | Front | Match the technical specifications |
| Volkswagen | Beetle (5C) | 2.0 TD 110BHP (2014-2019) | 2014-2019 | Front | Match the technical specifications |
| Volkswagen | Beetle (5C) | 2.0 TD 150BHP (2014-2019) | 2014-2019 | Front | Match the technical specifications |
| Volkswagen | Beetle (5C) | 2.0 Turbo 220BHP (2014-2019) | 2014-2019 | Front | Match the technical specifications |
| Volkswagen | Caddy | 2.0 TD (2007-2015) | 2007-2015 | Front | Match the technical specifications |
| Volkswagen | Caddy | 2.0 TD (2010-2015) | 2010-2015 | Front | Match the technical specifications |
| Volkswagen | Caddy Life | 2.0 TD (2007-2015) | 2007-2015 | Front | Match the technical specifications |
| Volkswagen | Caddy Maxi | 2.0 TD (2010-2015) | 2010-2015 | Front | Match the technical specifications |
| Volkswagen | CC | 1.4 Turbo (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Volkswagen | CC | 1.8 Turbo (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Volkswagen | CC | 2.0 TD (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Volkswagen | CC | 2.0 Turbo (2012-2017) | 2012-2017 | Front | Match the technical specifications |
| Volkswagen | Eos | 2.0 TD 140BHP (2006-2014) | 2006-2014 | Front | Match the technical specifications |
| Volkswagen | Eos | 2.0 Turbo (2006-2014) | 2006-2014 | Front | Match the technical specifications |
| Volkswagen | Eos | 2.0 Turbo (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Volkswagen | Eos | 3.2 250BHP (2006-2009) | 2006-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 1.4 Turbo 120BHP (2007-2009) | 2007-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 1.4 Turbo 140BHP (2005-2007) | 2005-2007 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 1.4 Turbo 170BHP (2005-2007) | 2005-2007 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 2.0 TD 170BHP (2005-2009) | 2005-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 2.0 TD 170BHP 4Motion (2004-2009) | 2004-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 2.0 Turbo GTi 200BHP (2004-2009) | 2004-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk5) | 2.0 Turbo GTi 230BHP (2006-2009) | 2006-2009 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 1.4 Turbo 160BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 2.0 TD 140BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 2.0 TD 140BHP 4Motion (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 2.0 TD 170BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 2.0 Turbo GTi 210BHP (2009-2013) | 2009-2013 | Front | Match the technical specifications |
| Volkswagen | Golf (Mk6) | 2.0 Turbo GTi 235BHP (2011-2013) | 2011-2013 | Front | Match the technical specifications |
| Volkswagen | Golf Cabriolet (Mk6) | 1.4 Turbo 160BHP (2011-2016) | 2011-2016 | Front | Match the technical specifications |
| Volkswagen | Golf Cabriolet (Mk6) | 2.0 TD 140BHP (2011-2016) | 2011-2016 | Front | Match the technical specifications |
| Volkswagen | Golf Cabriolet (Mk6) | 2.0 Turbo GTi 210BHP (2012-2016) | 2012-2016 | Front | Match the technical specifications |
| Volkswagen | Golf Plus | 1.4 Turbo (2006-2014) | 2006-2014 | Front | Match the technical specifications |
| Volkswagen | Golf Plus | 1.4 Turbo (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk5) | 1.4 Turbo (2006-2010) | 2006-2010 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk5) | 2.0 TD 170BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk5) | 2.0 Turbo (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk5) | 2.5 (2006-2010) | 2006-2010 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 TD 110BHP (2010-2018) | 2010-2018 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 TD 140BHP (2010-2018) | 2010-2018 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 TD 150BHP (2014-2018) | 2014-2018 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 TD 170BHP (2010-2018) | 2010-2018 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 Turbo 200BHP (2010-2018) | 2010-2018 | Front | Match the technical specifications |
| Volkswagen | Jetta (Mk6) | 2.0 Turbo 211BHP (2012-2018) | 2012-2018 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 1.4 Turbo 120BHP (2007-2010) | 2007-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 1.6 (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 1.8 Turbo (2007-2010) | 2007-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 1.9 TD 105BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 TD 110BHP (2008-2010) | 2008-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 TD 140BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 TD 140BHP 4Motion (2007-2010) | 2007-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 TD 170BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B6) | 2.0 Turbo 200BHP (2005-2010) | 2005-2010 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 1.4 Turbo 120BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 1.4 Turbo 150BHP (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 1.4 Turbo 160BHP (2013-2014) | 2013-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 1.6 TD (2009-2014) | 2009-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 1.8 Turbo (2010-2014) | 2010-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 2.0 TD 110BHP (2010-2011) | 2010-2011 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 2.0 TD 140BHP (2010-2014) | 2010-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 2.0 TD 170BHP (2010-2014) | 2010-2014 | Front | Match the technical specifications |
| Volkswagen | Passat (B7) | 2.0 Turbo 210BHP (2011-2014) | 2011-2014 | Front | Match the technical specifications |
| Volkswagen | Passat Alltrack | 1.8 Turbo 160BHP (2012-2015) | 2012-2015 | Front | Match the technical specifications |
| Volkswagen | Passat Alltrack | 2.0 TD 140BHP (2012-2015) | 2012-2015 | Front | Match the technical specifications |
| Volkswagen | Passat Alltrack | 2.0 TD 170BHP (2012-2015) | 2012-2015 | Front | Match the technical specifications |
| Volkswagen | Passat Alltrack | 2.0 TD 177BHP (2013-2015) | 2013-2015 | Front | Match the technical specifications |
| Volkswagen | Passat Alltrack | 2.0 Turbo 207BHP (2012-2015) | 2012-2015 | Front | Match the technical specifications |
| Volkswagen | Passat CC | 1.8 Turbo (2008-2012) | 2008-2012 | Front | Match the technical specifications |
| Volkswagen | Passat CC | 2.0 TD 140BHP (2008-2012) | 2008-2012 | Front | Match the technical specifications |
| Volkswagen | Passat CC | 2.0 TD 170BHP (2008-2012) | 2008-2012 | Front | Match the technical specifications |
| Volkswagen | Passat CC | 2.0 Turbo (2008-2012) | 2008-2012 | Front | Match the technical specifications |
| Volkswagen | Scirocco | 1.4 Turbo 122BHP (2008-2017) | 2008-2017 | Front | Match the technical specifications |
| Volkswagen | Scirocco | 1.4 Turbo 160BHP (2009-2017) | 2009-2017 | Front | Match the technical specifications |
| Volkswagen | Scirocco | 2.0 TD 140BHP (2008-2017) | 2008-2017 | Front | Match the technical specifications |
| Volkswagen | Scirocco | 2.0 TD 170BHP (2009-2017) | 2009-2017 | Front | Match the technical specifications |
| Volkswagen | Scirocco | 2.0 Turbo 210BHP (2008-2017) | 2008-2017 | Front | Match the technical specifications |
| Volkswagen | Scirocco GTS | 2.0 Turbo 220BHP (2015-2017) | 2015-2017 | Front | Match the technical specifications |
| Volkswagen | Sharan (7N) | 1.4 Turbo (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Volkswagen | Sharan (7N) | 2.0 TD 140BHP (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Volkswagen | Sharan (7N) | 2.0 TD 170BHP (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Volkswagen | Sharan (7N) | 2.0 Turbo (2010-2020) | 2010-2020 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 1.4 Turbo 122BHP (2010-2016) | 2010-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 1.4 Turbo 150BHP (2007-2016) | 2007-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 2.0 TD 110BHP (2010-2016) | 2010-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 2.0 TD 140BHP (2008-2016) | 2008-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 2.0 TD 170BHP (2007-2016) | 2007-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 2.0 Turbo 170BHP (2007-2016) | 2007-2016 | Front | Match the technical specifications |
| Volkswagen | Tiguan | 2.0 Turbo 200BHP (2007-2016) | 2007-2016 | Front | Match the technical specifications |
| Volkswagen | Touran | 1.4 Turbo (2006-2015) | 2006-2015 | Front | Match the technical specifications |
| Volkswagen | Touran | 1.4 Turbo (2010-2015) | 2010-2015 | Front | Match the technical specifications |
| Volkswagen | Touran | 1.6 (2003-2010) | 2003-2010 | Front | Match the technical specifications |
| Volkswagen | Touran | 1.9 TD (2003-2010) | 2003-2010 | Front | Match the technical specifications |
| Volkswagen | Touran | 2.0 (2003-2009) | 2003-2009 | Front | Match the technical specifications |
| Volkswagen | Touran | 2.0 TD (2003-2015) | 2003-2015 | Front | Match the technical specifications |
| Volkswagen | Touran | 2.0 TD (2010-2015) | 2010-2015 | Front | Match the technical specifications |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 20.25 kg |
|---|---|
| brand | DBA |
| product type | Disc & Xtreme Performance Pad Kit |
| dba range | 4000 Series T3 Slotted |
| axle position | Front |
| disc diameter (mm) | 312 |
| thickness [mm] | 25 |
| overall height [mm] | 49.8 |
| centre bore [mm] | 65 |
| pitch circle diameter [mm] | 112 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 5 |
Be the first to review “DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 312 x 25mm for Audi A1 quattro 8X / Audi A3 8P & More”
Items are usually dispatched within 2-3 business days delivery, but may take longer on custom made products. Delivery may take several weeks for products that aren't in UK or EU stock, but we will contact you with a delivery estimate if this applies to you, once you have ordered.
Related products
-
VW Amarok 2010-17 Steel Side Steps With LEDs (Black)
£411.39 Incl. VAT (UK only) -
Tent Roll Bar
£489.99 Incl. VAT (UK only) -
DBA Street Performance Upgrade Kit
£313.76 Incl. VAT (UK only) -
VW Amarok Window Deflector Sun Shade
£33.99 Incl. VAT (UK only)
Reviews
There are no reviews yet.
