Name: DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 319.5 x 34mm for Infiniti EX30D / Infiniti EX37 & More
Brand: DBA
SKU: DBA42324S-1696XP
Availability: OutOfStock

DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 319.5mm (DBA42324S-1696XP) is listed for the vehicle applications below.

Product features

T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
Includes Xtreme Performance pads for applications requiring a higher-friction compound.
Disc and pad component references are listed below so you can check the complete brake setup.

Kit contents

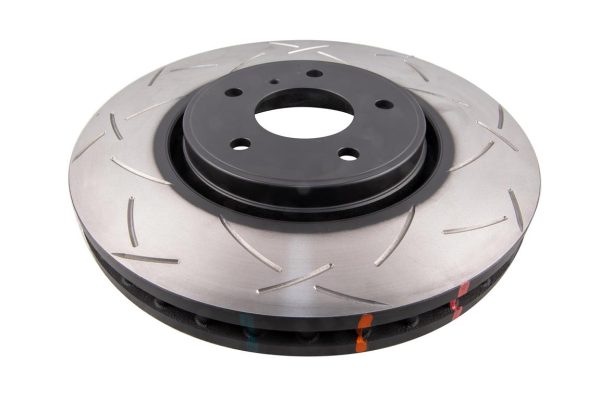

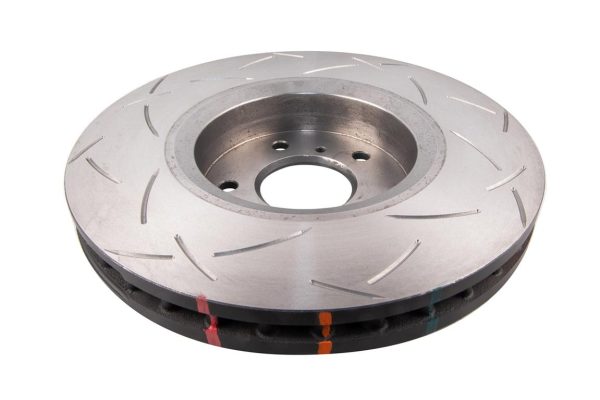

2 × DBA42324S — brake disc

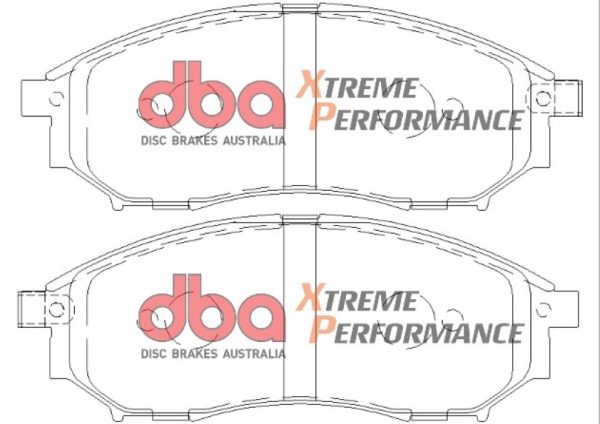

1 × DB1696XP — brake pad set

Technical specifications

Brand	DBA (Disc Brakes Australia)
Part number	DBA42324S-1696XP
Application position	Front
Supplied quantity	1 kit
Supplier-listed product weight [kg]	28.51

Disc specifications — DBA42324S

Diameter [mm]	319.5
Disc ventilation	Kangaroo Paw
Number of mounting holes	5
Centre bore [mm]	68
Minimum Thickness [mm]	32
Thickness [mm]	34
Overall height [mm]	49
Pitch circle diameter [mm]	114.3
DBA stage	Stage 4
Range	4000 Series T3 Slotted

Pad specifications — DB1696XP

Width [mm]	157.1
Overall height [mm]	58.6
Pad thickness [mm]	15.9
FMSI reference	7766-D888
OE reference	41060AR090
Axle	Front
ECE R90 number	E11 R90-02A01584/53192
Range	Xtreme Performance

Vehicle compatibility

Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.

Make	Model / chassis	Engine / variant	Years	Axle	Brake-system notes
Infiniti	EX30D	3.0 TD (2010-2013)	2010-2013	Front	Match the technical specifications
Infiniti	EX37	3.7 (2008-2013)	2008-2013	Front	Match the technical specifications
Infiniti	FX35	3.5 (2006-2008)	2006-2008	Front	Match the technical specifications
Infiniti	FX45	4.5 (2006-2008)	2006-2008	Front	Match the technical specifications
Infiniti	G37	3.7 (2008-2014)	2008-2014	Front	Match the technical specifications
Infiniti	M30D	3.0 TD (2010-2014)	2010-2014	Front	Match the technical specifications
Infiniti	M35h	3.5 Hybrid (2011-2014)	2011-2014	Front	Match the technical specifications
Infiniti	M37	3.7 (2010-2014)	2010-2014	Front	Match the technical specifications
Infiniti	QX70	3.7 320BHP (2013-2017)	2013-2017	Front	Match the technical specifications

Fitting and technical documents

Supply and fitting at DNA4x4

DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.

DNA4x4 on YouTube

Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.

Weight	28.51 kg
brand	DBA
product type	Disc & Xtreme Performance Pad Kit
dba range	4000 Series T3 Slotted
axle position	Front
disc diameter (mm)	319.5
thickness [mm]	34
overall height [mm]	49
centre bore [mm]	68
pitch circle diameter [mm]	114.3
disc ventilation	Kangaroo Paw
number of mounting holes	5
