DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 349 x 34mm for Audi A6 quattro Avant C8 / Audi A6 quattro C8 & More
Availability: Usually in UK/EU stock£657.14 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 349mm (DBA43016S-15030XP). 349mm diameter; 2 × DBA43016S, 1 × DB15030XP. Supplied as 1 kit. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Front Disc & Xtreme Performance Pad Kit 349mm (DBA43016S-15030XP) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Includes Xtreme Performance pads for applications requiring a higher-friction compound.
- Disc and pad component references are listed below so you can check the complete brake setup.
Kit contents
- 2 × DBA43016S — brake disc
- 1 × DB15030XP — brake pad set
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA43016S-15030XP |
| Application position | Front |
| Supplied quantity | 1 kit |
| Supplier-listed product weight [kg] | 29.24 |

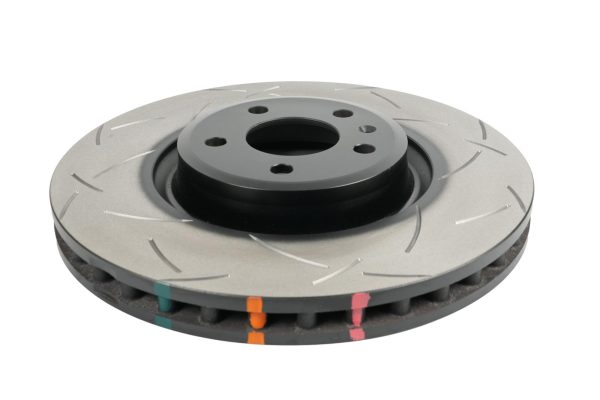

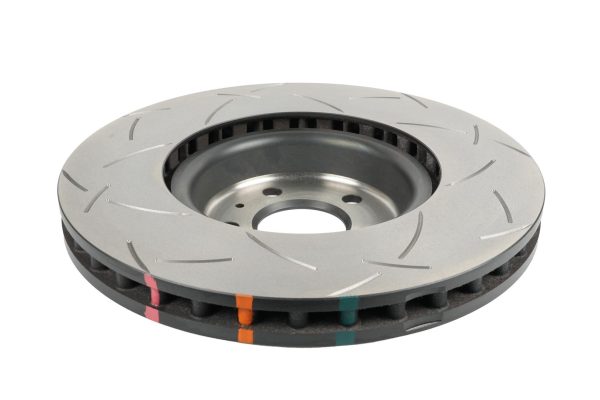

Disc specifications — DBA43016S
| Diameter [mm] | 349 |
|---|---|
| Disc ventilation | Vented |
| Number of mounting holes | 5 |
| Minimum Thickness [mm] | 32 |
| Thickness [mm] | 34 |
| Overall height [mm] | 57.2 |
| Hole diameter[mm] | 68 |
| Range | 4000 Series T3 Slotted |

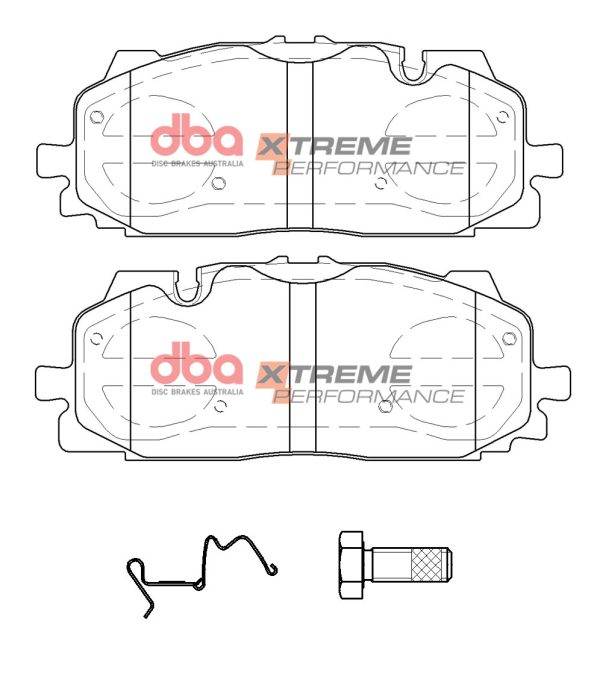

Pad specifications — DB15030XP
| Axle | Front |
|---|---|
| Width [mm] | 194.1 |
| Overall height [mm] | 74.1 |
| Pad thickness [mm] | 15.2 |
| FMSI / WVA / OEM | 9204-D1894 |
| Range | Xtreme Performance |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Audi | A6 quattro Avant C8 | 3.0 TD (50) 282BHP (2018-) | 2018- | Front | Match the technical specifications |
| Audi | A6 quattro Avant C8 | 3.0 Turbo (55) 335BHP (2018-) | 2018- | Front | Match the technical specifications |
| Audi | A6 quattro C8 | 3.0 TD (50) 282BHP (2018-) | 2018- | Front | Match the technical specifications |
| Audi | A6 quattro C8 | 3.0 Turbo (55) 335BHP (2018-) | 2018- | Front | Match the technical specifications |
| Audi | A8 quattro D5 | 3.0 TDI (45) quattro 249BHP (2019-) | 2019- | Front | Match the technical specifications |
| Audi | A8 quattro D5 | 3.0 TFSI (50) Mild Hybrid 286BHP (2017-) | 2017- | Front | Match the technical specifications |
| Audi | A8 quattro D5 | 4.0 TFSI (60) Mild Hybrid 460BHP (2018-) | 2018- | Front | Match the technical specifications |
| Audi | Q7 4M | 2.0 Turbo 252BHP (2015-2020) | 2015-2020 | Front | Match the technical specifications |
| Audi | Q7 4M | 3.0 TD 211BHP (2015-2019) | 2015-2019 | Front | Match the technical specifications |
| Audi | Q7 4M | 3.0 TD 218BHP (2015-) | 2015- | Front | Match the technical specifications |
| Audi | Q7 4M | 3.0 TD 272BHP (2015-) | 2015- | Front | Match the technical specifications |
| Audi | Q7 4M | 3.0 TD Hybrid e-tron 368BHP (2015-) | 2015- | Front | Match the technical specifications |
| Audi | Q7 4M | 3.0 TDI (45) Mild Hybrid quattro 231BHP (2019-) | 2019- | Front | Match the technical specifications |
| Audi | S4 B9 | 3.0 TD 347BHP (2019-) | 2019- | Front | Match the technical specifications |
| Audi | S4 B9 | 3.0 Turbo 349BHP (2016-2019) | 2016-2019 | Front | Match the technical specifications |
| Audi | S5 B9 | 3.0 TD 341BHP (2019-) | 2019- | Front | Match the technical specifications |
| Audi | S5 B9 | 3.0 TD 347BHP (2019-) | 2019- | Front | Match the technical specifications |
| Audi | S5 B9 | 3.0 Turbo 354BHP (2016-2019) | 2016-2019 | Front | Match the technical specifications |
| Audi | SQ5 8Y | 3.0 TDI Mild Hybrid 341BHP (2021-) | 2021- | Front | Match the technical specifications |
| Audi | SQ5 8Y | 3.0 TDI Mild Hybrid quattro Sportback 341BHP (2021-) | 2021- | Front | Match the technical specifications |
| Audi | SQ5 8Y | 3.0 Twin TD 347BHP (2019-) | 2019- | Front | Match the technical specifications |
| Volkswagen | Touareg (3rd Gen) | 3.0 TD 231BHP (2018-) | 2018- | Front | Match the technical specifications |
| Volkswagen | Touareg (3rd Gen) | 3.0 TD 286BHP (2018-) | 2018- | Front | Match the technical specifications |
| Volkswagen | Touareg (3rd Gen) | 3.0 Turbo 340BHP (2018-) | 2018- | Front | Match the technical specifications |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 29.24 kg |
|---|---|
| brand | DBA |
| product type | Disc & Xtreme Performance Pad Kit |
| dba range | 4000 Series T3 Slotted |
| axle position | Front |
| disc diameter (mm) | 349 |
| thickness [mm] | 34 |
| overall height [mm] | 57.2 |
| disc ventilation | Vented |
| number of mounting holes | 5 |
