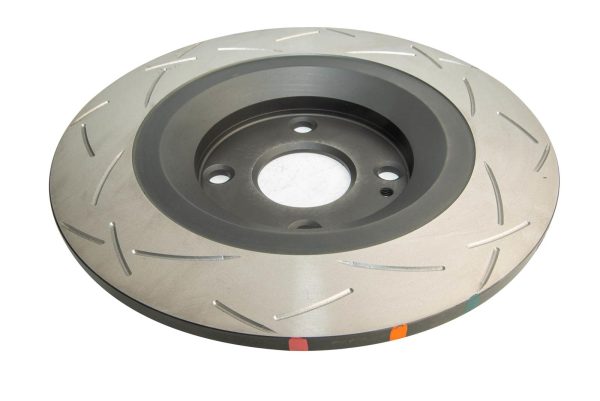

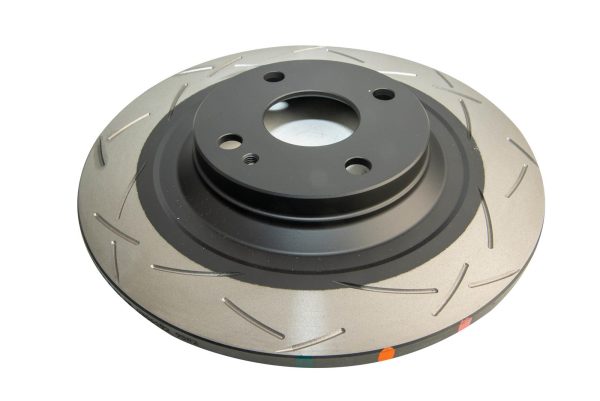

DBA 4000 Series T3 Slotted Rear Brake Disc 276mm for Mazda MX5 (Mk2) (NB) Sport
Availability: Usually in UK/EU stock£159.21 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Rear Brake Disc 276mm (DBA4546S). 276mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Rear Brake Disc 276mm (DBA4546S) is listed for the specified Mazda MX5 (Mk2) (NB) Sport applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- High-carbon alloyed iron provides thermal capacity for repeated braking.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA4546S |
| Application position | Rear |
| Supplied quantity | 1 brake disc |
| Diameter [mm] | 276 |
| Disc ventilation | Solid |
| Number of mounting holes | 4 |
| Centre bore [mm] | 55 |
| Minimum Thickness [mm] | 8 |
| Thickness [mm] | 10 |
| Overall height [mm] | 35 |
| Pitch circle diameter [mm] | 100 |
| DBA stage | Stage 4 |
| ECE R90 number | E11 90R-02C01704/72740 |
| Range | 4000 Series T3 Slotted |
| Supplier-listed product weight [kg] | 4.00 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Mazda | MX5 (Mk2) (NB) Sport | 1.8 (2001-2005) | 2001-2005 | Rear | Brake Caliper: Akebono; Disc Diameter [mm]: 276 |
| Mazda | MX5 (Mk2) (NB) Sport | 1.8 LSD (2001-2005) | 2001-2005 | Rear | Brake Pads: DB1508; Brake Caliper: Akebono; Disc Diameter [mm]: 276 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 4.00 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc |
| dba range | 4000 Series T3 Slotted |
| axle position | Rear |
| disc diameter (mm) | 276 |
| thickness [mm] | 10 |
| overall height [mm] | 35 |
| centre bore [mm] | 55 |
| pitch circle diameter [mm] | 100 |
| disc ventilation | Solid |
| number of mounting holes | 4 |
