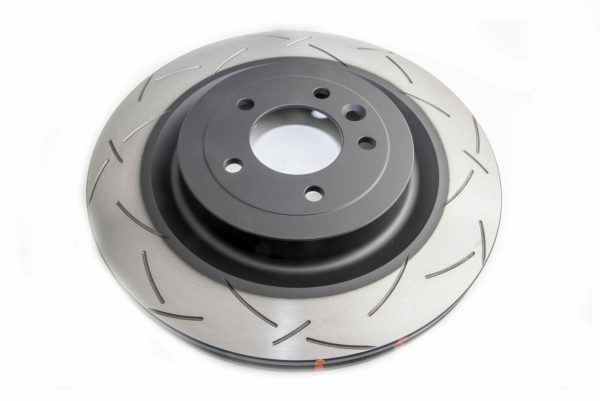

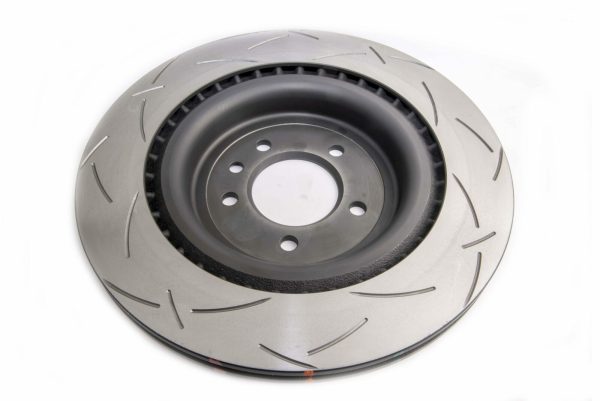

DBA 4000 Series T3 Slotted Rear Brake Disc 365mm for Land Rover Range Rover L405 / Land Rover Range Rover Sport L494
Availability: Usually in UK/EU stock£194.18 Incl. VAT (UK only)
DBA 4000 Series T3 Slotted Rear Brake Disc 365mm (DBA43091S). 365mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 4000 Series T3 Slotted Rear Brake Disc 365mm (DBA43091S) is listed for the specified Land Rover Range Rover L405, Land Rover Range Rover Sport L494 applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA43091S |
| Application position | Rear |
| Supplied quantity | 1 brake disc |
| Diameter [mm] | 365 |
| Number of mounting holes | 5 |
| Centre bore [mm] | 79 |
| Minimum Thickness [mm] | 22 |
| Thickness [mm] | 25 |
| Overall height [mm] | 49 |
| Disc ventilation | Vented |
| Range | 4000 Series T3 Slotted |
| Supplier-listed product weight [kg] | 10.76 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Land Rover | Range Rover L405 | 2.0 Turbo Hybrid 300BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 2.0 Turbo Hybrid 400BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 3.0 Supercharged 340BHP (2013-) | 2013- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 3.0 TD 258BHP (2012-) | 2012- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 3.0 TD 275BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 3.0 TD Hybrid 354BHP (2016-) | 2016- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 3.0 Turbo Hybrid 400BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 4.4 TD 339BHP (2012-) | 2012- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 5.0 380BHP (2012-) | 2012- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 5.0 Supercharged 510BHP (2012-2018) | 2012-2018 | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 5.0 Supercharged 525BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 5.0 Supercharged 550BHP (2015-2018) | 2015-2018 | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover L405 | 5.0 Supercharged 566BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 2.0 Turbo 300BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 2.0 Turbo Hybrid 400BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 Supercharged 340BHP (2013-) | 2013- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 Supercharged 380BHP (2015-) | 2015- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 TD 292BHP (2014-) | 2014- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 TD 306BHP (2014-) | 2014- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 TD Hybrid 354BHP (2016-) | 2016- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 3.0 Turbo Hybrid 400BHP (2019-) | 2019- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 4.4 TD 340BHP (2014-) | 2014- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 5.0 Supercharged 510BHP (2013-2018) | 2013-2018 | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 5.0 Supercharged 525BHP (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 5.0 Supercharged 550BHP (2014-2018) | 2014-2018 | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
| Land Rover | Range Rover Sport L494 | 5.0 Supercharged 575BHP SVR (2018-) | 2018- | Rear | Brake Pads: DB8919; Brake Caliper: TRW; Disc Diameter [mm]: 365 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 10.76 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc |
| dba range | 4000 Series T3 Slotted |
| axle position | Rear |
| disc diameter (mm) | 365 |
| thickness [mm] | 25 |
| overall height [mm] | 49 |
| centre bore [mm] | 79 |
| disc ventilation | Vented |
| number of mounting holes | 5 |
