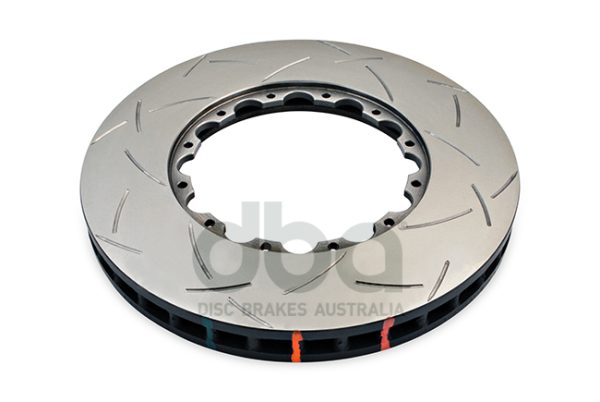

DBA 5000 Series T3 Slotted Front Replacement Rotor Ring 320 x 32mm for Mitsubishi Lancer Evo 5 / Mitsubishi Lancer Evo 6 & More
Availability: Usually in UK/EU stock£245.77 Incl. VAT (UK only)
DBA 5000 Series T3 Slotted Front Replacement Rotor Ring 320mm (DBA52218.1S). 320mm diameter. Supplied as 1 rotor ring. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 5000 Series T3 Slotted Front Replacement Rotor Ring 320mm (DBA52218.1S) is listed for the vehicle applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- High-carbon alloyed iron provides thermal capacity for repeated braking.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
- Replacement friction ring only. Match the hat interface, fixing pattern and dimensions before ordering.
Rotor ring only. The mounting hat is not included.
Product reference note: 5000 series – T3 Slotted – Rotor Only (Suitable for DBA52218BLKS)
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA52218.1S |
| Application position | Front |
| Supplied quantity | 1 rotor ring |
| Product configuration | 5000 series – T3 Slotted – Rotor Only (Suitable for DBA52218BLKS) |
| Diameter [mm] | 320 |
| Thickness [mm] | 32 |
| Disc ventilation | Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) | 64 |
| Pitch Circle Diameter (P.C.D.) | 175 |
| Inside Diameter [mm] | 192 |
| Diameter & Number of Bolt Holes [mm] | 6.4 (x12) |
| Air Gap [mm] | 14 |
| Offset [mm] | -6.35 |
| Flange Inside Diameter [mm] | 161 |
| Flange Thickness [mm] | 6.35 |
| Hole Type | Round Hole |
| DBA stage | Stage 5 |
| Replacement Nuts | Included |
| Range | 5000 Series T3 Slotted |
| Supplier-listed product weight [kg] | 8.20 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Mitsubishi | Lancer Evo 5 | 2.0 Turbo GSR (1997-1999) | 1997-1999 | Front | Replacement Rotor; Brake Pads: DB1678; Brake Caliper: Brembo |
| Mitsubishi | Lancer Evo 6 | 2.0 Turbo (1998-2001) | 1998-2001 | Front | Replacement Rotor; Brake Pads: DB1678; Brake Caliper: Brembo |
| Mitsubishi | Lancer Evo 7 | 2.0 Turbo (2000-2003) | 2000-2003 | Front | Replacement Rotor; Brake Pads: DB1678; Brake Caliper: Brembo |
| Mitsubishi | Lancer Evo 8 | 2.0 Turbo (2002-2005) | 2002-2005 | Front | Replacement Rotor; Brake Pads: DB1678; Brake Caliper: Brembo |
| Mitsubishi | Lancer Evo 9 | 2.0 Turbo (2005-2008) | 2005-2008 | Front | Replacement Rotor; Brake Pads: DB1678; Brake Caliper: Brembo |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 8.20 kg |
|---|---|
| brand | DBA |
| product type | Replacement Rotor Ring |
| dba range | 5000 Series T3 Slotted |
| axle position | Front |
| disc diameter (mm) | 320 |
| thickness [mm] | 32 |
| disc ventilation | Kangaroo Paw |
