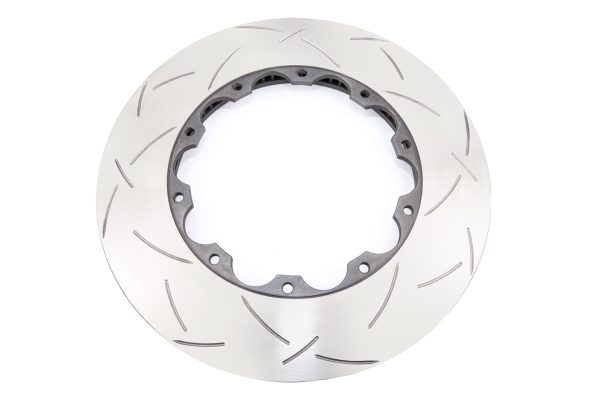

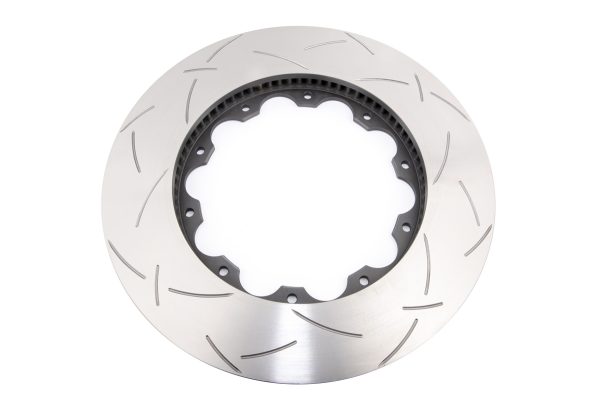

DBA 5000 Series T3 Slotted Left Front Replacement Rotor Ring 390mm for Nissan GT-R (R35)
Availability: Usually in UK/EU stock£341.35 Incl. VAT (UK only)
DBA 5000 Series T3 Slotted Left Front Replacement Rotor Ring 390mm (DBA52370.1LS). 390mm diameter. Supplied as 1 rotor ring. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA 5000 Series T3 Slotted Left Front Replacement Rotor Ring 390mm (DBA52370.1LS) is listed for the specified Nissan GT-R (R35) applications below.
Product features
- T3 tri-symmetrical slots provide exit paths for pad dust and gases at the friction surface.
- High-carbon alloyed iron provides thermal capacity for repeated braking.
- DBA Thermal Stability Profiling conditions the iron through controlled heat treatment.
- Replacement friction ring only. Match the hat interface, fixing pattern and dimensions before ordering.
Rotor ring only. The mounting hat is not included.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA52370.1LS |
| Application position | Front |
| Side | Left |
| Supplied quantity | 1 rotor ring |
| Product configuration | 5000 series – T3 Slotted – Rotor Only Left Hand |
| Diameter [mm] | 390 |
| Thickness [mm] | 34 |
| Disc ventilation | 72 Curved Vanes |
| Annulus [mm] (Maximum useable pad width) | 68.1 |
| Pitch Circle Diameter (P.C.D.) | 231.7 |
| Inside Diameter [mm] | 251 |
| Diameter & Number of Bolt Holes [mm] | 9 (x10) |
| Air Gap [mm] | 17 |
| Offset [mm] | -0.06 |
| Flange Inside Diameter [mm] | 208 |
| Flange Thickness [mm] | 7 |
| Hole Type | Round Hole |
| DBA stage | Stage 5 |
| Replacement Nuts | Included |
| Range | 5000 Series T3 Slotted |
| Supplier-listed product weight [kg] | 12.03 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Nissan | GT-R (R35) | 3.8 Twin Turbo 523BHP (2011-2012) | 2011-2012 | Front | Brake Discs – Replacement for Brembo OE Setup; Brake Caliper: Brembo; Disc Diameter [mm]: 390 |
| Nissan | GT-R (R35) | 3.8 Twin Turbo 542BHP (2012-2016) | 2012-2016 | Front | Brake Discs – Replacement for Brembo OE Setup; Brake Caliper: Brembo; Disc Diameter [mm]: 390 |
| Nissan | GT-R (R35) | 3.8 Twin Turbo 570BHP (2016-) | 2016- | Front | Brake Discs – Replacement for Brembo OE Setup; Brake Caliper: Brembo; Disc Diameter [mm]: 390 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 12.03 kg |
|---|---|
| brand | DBA |
| product type | Replacement Rotor Ring |
| dba range | 5000 Series T3 Slotted |
| axle position | Front |
| disc diameter (mm) | 390 |
| side | Left |
| thickness [mm] | 34 |
| disc ventilation | 72 Curved Vanes |
