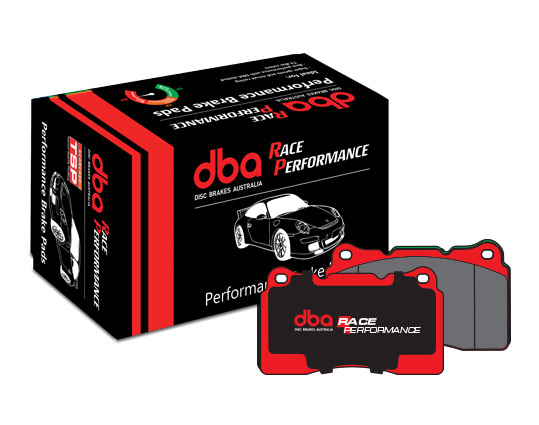

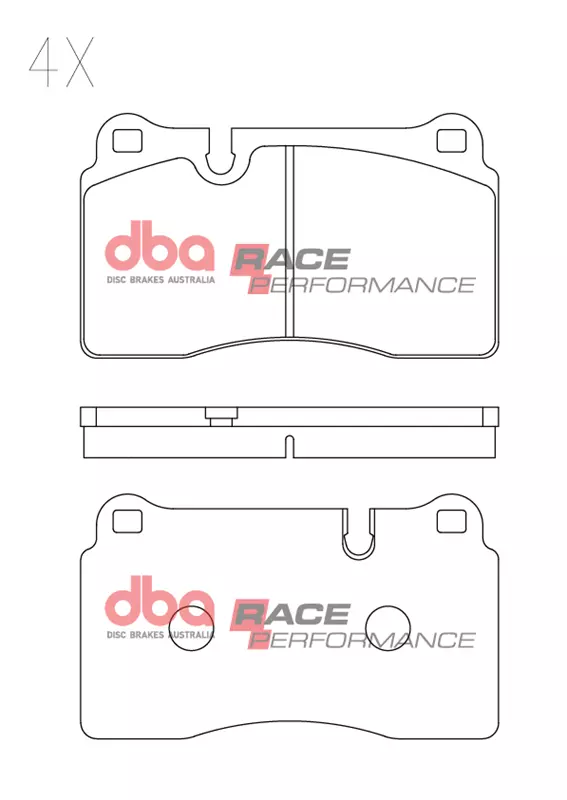

DBA Race Performance Front or Rear Brake Pad Set 131.7 x 77.3 x 15.9mm for Ac MK VI / Aston Martin DB9 & More
Availability: Usually in UK/EU stock£234.53 Incl. VAT (UK only)
DBA Race Performance Front or Rear Brake Pad Set (DB2228RP). 131.7mm width; 77.3mm height; 15.9mm thickness. Supplied as 1 pad set. Check the full vehicle compatibility table and brake-system notes before ordering. Track use only. Not for road applications.
DBA Race Performance Front or Rear Brake Pad Set (DB2228RP) is listed for the vehicle applications below.
Product features
- Race Performance compound is designed for track and circuit use.
- This compound is not suitable for road applications.
- Supplier-stated optimum working temperature range: 250°C to 750°C.
- Supplied set: 4 Common Pads.
Track use only: this Race Performance compound is not suitable for road applications.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DB2228RP |
| Application position | Front or Rear (vehicle dependent) |
| Supplied quantity | 1 pad set |
| OE reference | JZW698302DF, 84630374 |
| Set contents | 4 Common Pads |
| Width [mm] | 131.7 |
| Pad thickness [mm] | 15.9 |
| Overall height [mm] | 77.3 |
| Range | Race Performance |
| Supplier-listed product weight [kg] | 2.20 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
The axle position varies by vehicle. This listing supplies 1 pad set, not a combined front-and-rear brake set.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Ac | MK VI | 6.2 (2009-) | 2009- | Front | Brake Caliper: Brembo |
| Ac | MK VI | 6.2 Supercharged (2009-) | 2009- | Front | Brake Caliper: Brembo |
| Aston Martin | DB9 | 5.9 456BHP (2003-2012) | 2003-2012 | Front | Brake Caliper: Brembo |
| Aston Martin | Vantage | 4.3 385BHP (2004-2008) | 2004-2008 | Front | Brake Caliper: Brembo |
| Aston Martin | Vantage | 4.7 426BHP (2008-2012) | 2008-2012 | Front | Brake Caliper: Brembo |
| Bmw (Alpina) | B10 (E39) | 4.8 S 375BHP (2002-2004) | 2002-2004 | Front | Brake Caliper: Brembo |
| Chevrolet | Camaro (5th Gen) | 7.0 Z/28 505BHP | 2014-2015 | Rear | Match the technical specifications |
| Chevrolet | Corvette (C6) | 6.2 Supercharged | 2008-2013 | Rear | Match the technical specifications |
| Chevrolet | Corvette (C7) Z06 | 6.2 Supercharged 650BHP | 2015-2019 | Rear | Match the technical specifications |
| Chevrolet | Corvette (C7) Z07 | 6.2 Supercharged 650BHP | 2015-2019 | Rear | Match the technical specifications |
| Cupra | Ateca | 2.0 Turbo 296BHP (2018-) | 2018- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Formentor | 1.4 Turbo and Electric 242BHP (2020-) | 2020- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Formentor | 1.5 Turbo hybrid 272BHP (2024-) | 2024- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Formentor | 2.0 Turbo 310BHP (2020-) | 2020- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Formentor | 2.0 Turbo VZ 310BHP (2020-) | 2020- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Leon | 1.5 Turbo hybrid 272BHP (2024-) | 2024- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Leon | 2.0 Turbo 300BHP (2020-2022) | 2020-2022 | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Leon | 2.0 Turbo 300BHP (2022-) | 2022- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Cupra | Leon | 2.0 Turbo hybrid 330BHP (2024-) | 2024- | Front | Brake Disc: DBA2842; Brake Caliper: Brembo; for PR: 1LK, 1LM, 1LP |
| Dodge | Viper | 8.4 645BHP | 2015- | Rear | Match the technical specifications |
| Ferrari | 360 Modena CS | 3.6 425BHP | 2003-2005 | Rear | Match the technical specifications |
| Ferrari | 612 | 5.7 540BHP (2004-2008) | 2004-2008 | Front | Brake Caliper: Brembo |
| Ferrari | Enzo | 6.0 660BHP | 2002-2004 | Rear | Match the technical specifications |
| Ferrari | F430 | 4.3 497BHP | 2004-2010 | Rear | Match the technical specifications |
| Ferrari | F430 Scuderia | 4.3 510BHP | 2008-2010 | Rear | Match the technical specifications |
| Lamborghini | Aventador | 6.5 700BHP | 2011-2015 | Rear | Match the technical specifications |
| Renault | Megane Coupe (Mk3) RS Trophy | 2.0 Turbo 275BHP (2014-2016) | 2014-2016 | Front | Brake Caliper: Brembo |
| Seat | Leon (5F) | 2.0 Turbo Cupra 280BHP (2014-2016) | 2014-2016 | Front | Brake Disc: DBA2842; Brake Caliper: Brembo |
| Seat | Leon (5F) | 2.0 Turbo Cupra 290BHP (2015-2017) | 2015-2017 | Front | Brake Disc: DBA2842; Brake Caliper: Brembo |
| Seat | Leon (5F) | 2.0 Turbo Cupra 300BHP (2017-2020) | 2017-2020 | Front | Brake Disc: DBA2842; Brake Caliper: Brembo |
| Seat | Leon (5F) | 2.0 Turbo Cupra R 310BHP (2018-2020) | 2018-2020 | Front | Brake Disc: DBA2842; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 3.0 TD 225BHP (2004-2010) | 2004-2010 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 3.0 TD 240BHP (2007-2010) | 2007-2010 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 3.2 220BHP (2002-2006) | 2002-2006 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 3.2 241BHP (2004-2006) | 2004-2006 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 3.6 280BHP (2005-2010) | 2005-2010 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 4.2 310BHP (2002-2006) | 2002-2006 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 4.2 350BHP (2006-2010) | 2006-2010 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (1st Gen) | 6.0 450BHP (2005-2010) | 2005-2010 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (2nd Gen) | 3.0 Supercharged Hybrid 333BHP (2010-2018) | 2010-2018 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (2nd Gen) | 3.0 TD 204BHP (2010-2018) | 2010-2018 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (2nd Gen) | 3.0 TD 240BHP (2010-2018) | 2010-2018 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (2nd Gen) | 3.0 TD 262BHP (2014-2018) | 2014-2018 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
| Volkswagen | Touareg (2nd Gen) | 3.6 280BHP (2010-2018) | 2010-2018 | Front | Brake Disc: DBA2244; Brake Caliper: Brembo |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 2.20 kg |
|---|---|
| brand | DBA |
| product type | Brake Pad Set |
| dba range | Race Performance |
| axle position | Front, Rear |
| pad thickness [mm] | 15.9 |
| width [mm] | 131.7 |
| overall height [mm] | 77.3 |
| set contents | 4 Common Pads |
