DBA Street Series En-Shield Front Brake Disc 312 x 28mm for Mercedes CLS (C219) CLS320 TD / Mercedes CLS (C219) CLS350 TD & More
DBA Street Series En-Shield Front Brake Disc 312 x 28mm for Mercedes CLS (C219) CLS320 TD / Mercedes CLS (C219) CLS350 TD & More
  1. DBA Street Series En-Shield Front Brake Disc 312 x 28mm for Mercedes CLS (C219) CLS320 TD / Mercedes CLS (C219) CLS350 TD & More
  2. DBA Street Series En-Shield Front Brake Disc 312 x 28mm for Mercedes CLS (C219) CLS320 TD / Mercedes CLS (C219) CLS350 TD & More

DBA Street Series En-Shield Front Brake Disc 312 x 28mm for Mercedes CLS (C219) CLS320 TD / Mercedes CLS (C219) CLS350 TD & More

Availability: Usually in UK/EU stock

£108.69 Incl. VAT (UK only)

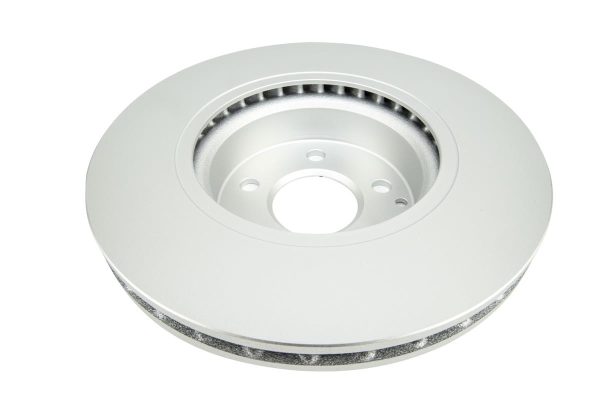

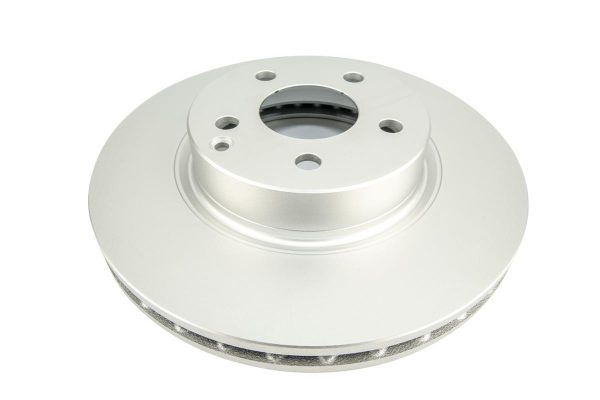

DBA Street Series En-Shield Front Brake Disc 312mm (DBA3032E). 312mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.

Out of stock

SKU: DBA3032E Categories: , , , , , , , , , , , , , , , , , Tags: , Brand:
Guaranteed Safe Checkout

DBA Street Series En-Shield Front Brake Disc 312mm (DBA3032E) is listed for the vehicle applications below.

Product features

  • A plain friction surface provides an OE-style disc finish.
  • En-Shield protective coating helps resist corrosion on the disc.

Technical specifications

Brand DBA (Disc Brakes Australia)
Part number DBA3032E
Application position Front
Supplied quantity 1 brake disc
Disc ventilation Vented
Diameter [mm] 312
Overall height [mm] 64.6
Thickness [mm] 28
Minimum Thickness [mm] 25.4
Centre bore [mm] 67
Number of mounting holes 5
ECE R90 number E11*90R02/06*59757*00
Range Street Series En-Shield
Supplier-listed product weight [kg] 9.40

Vehicle compatibility

Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.

Make Model / chassis Engine / variant Years Axle Brake-system notes
Mercedes-Benz CLS (C219) CLS320 TD (2005-2011) 2005-2011 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz CLS (C219) CLS350 TD 224BHP (2009-2011) 2009-2011 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz CLS (C219) CLS350 TD 272BHP (2009-2011) 2009-2011 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E230 (2007-2009) 2007-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E280 (2005-2009) 2005-2009 Front Brake Caliper: Bosch; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E280 (2005-2009) 2005-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E320 (2003-2009) 2003-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E320 TD (2003-2009) 2003-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (T211) E350 (2005-2009) 2005-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (W211) E280 (2005-2009) 2005-2009 Front Brake Caliper: Bosch; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (W211) E320 (2002-2009) 2002-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (W211) E320 TD (2003-2009) 2003-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (W211) E350 (2005-2009) 2005-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312
Mercedes-Benz E-Class (W211) E350 (2007-2009) 2007-2009 Front Brake Pads: DB1453; Brake Caliper: Brembo; Disc Diameter [mm]: 312

Fitting and technical documents

Supply and fitting at DNA4x4

DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.

DNA4x4 on YouTube

Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.

Weight 9.40 kg
brand

DBA
product type

Brake Disc
dba range

Street Series En-Shield
axle position

Front
disc diameter (mm)

312
thickness [mm]

28
overall height [mm]

64.6
centre bore [mm]

67
disc ventilation

Vented
number of mounting holes

5
