DBA Street Series En-Shield Plain Front Brake Disc & Pad Kit 320mm for Isuzu D-MAX
Availability: Usually in UK/EU stock£270.31 Incl. VAT (UK only)
DBA Street Series En-Shield Plain Front Brake Disc & Pad Kit 320mm (DBA3766E-15074SS). 320mm diameter; 2 × DBA3766E, 1 × DB15074SS. Supplied as 1 kit. Check the full vehicle compatibility table and brake-system notes before ordering.
DBA Street Series En-Shield Plain Front Brake Disc & Pad Kit 320mm (DBA3766E-15074SS) is listed for the specified Isuzu D-MAX applications below.
Product features
- A plain friction surface provides an OE-style disc finish.
- En-Shield protective coating helps resist corrosion on the disc.
- Disc and pad component references are listed below so you can check the complete brake setup.

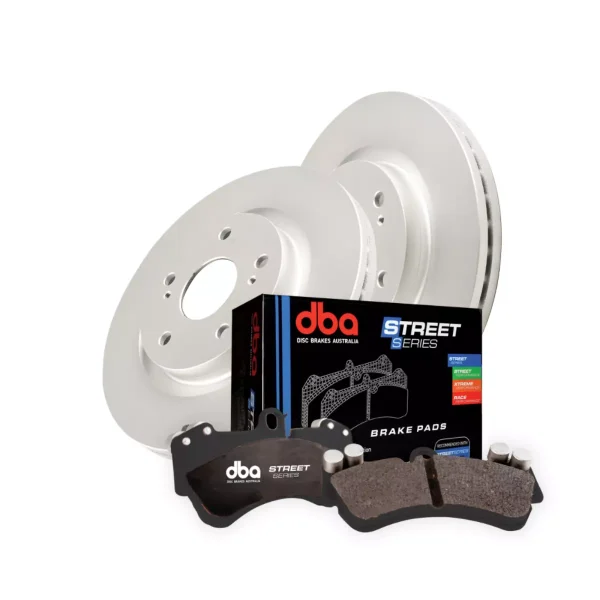

Kit contents
- 2 × DBA3766E — brake disc
- 1 × DB15074SS — brake pad set
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA3766E-15074SS |
| Application position | Front |
| Supplied quantity | 1 kit |
| Supplier-listed product weight [kg] | 22.39 |
Disc specifications — DBA3766E
| Disc ventilation | Vented |
|---|---|
| Diameter [mm] | 320 |
| Overall height [mm] | 61 |
| Thickness [mm] | 30 |
| Minimum Thickness [mm] | 28 |
| Centre bore [mm] | 101 |
| Number of mounting holes | 6 |
| Axle | FRONT |
| Range | Street Series En-Shield |

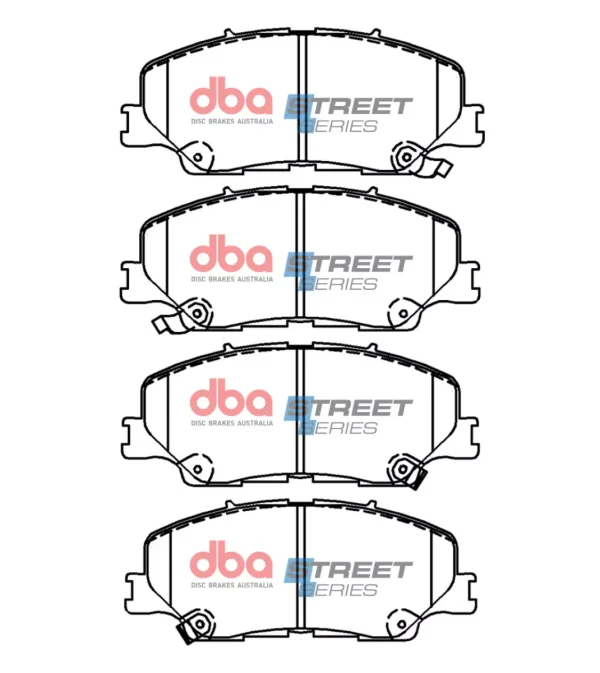

Pad specifications — DB15074SS
| Width [mm] | 122.2 |
|---|---|
| Overall height [mm] | 50.6 |
| Pad thickness [mm] | 13.8 |
| Range | Street Series |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Isuzu | D-MAX | 1.9 DDI (2020-) | 2020- | Front | Match the technical specifications |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 22.39 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc & Pad Kit |
| dba range | Street Series En-Shield Plain |
| axle position | Front |
| disc diameter (mm) | 320 |
| thickness [mm] | 30 |
| overall height [mm] | 61 |
| centre bore [mm] | 101 |
| disc ventilation | Vented |
| number of mounting holes | 6 |
