SOLD OUT

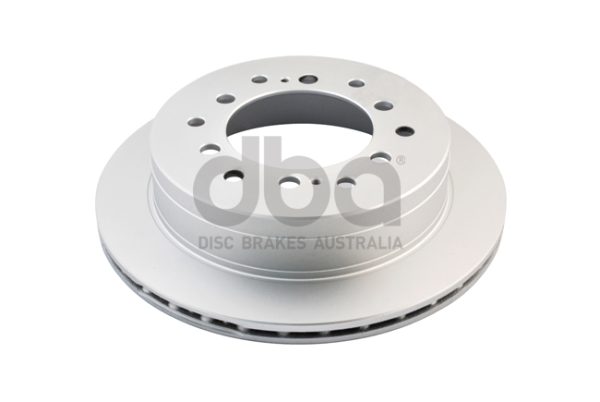

DBA Street Series En-Shield Rear Brake Disc 312 x 18mm for Toyota FJ Cruiser / Toyota Fortuner AN150/160 / Toyota Land Cruiser
Availability: Usually in UK/EU stock£97.82 Incl. VAT (UK only)
DBA Street Series En-Shield Rear Brake Disc 312mm (DBA2737E). 312mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.
Out of stock
DBA Street Series En-Shield Rear Brake Disc 312mm (DBA2737E) is listed for the vehicle applications below.
Product features
- A plain friction surface provides an OE-style disc finish.
- En-Shield protective coating helps resist corrosion on the disc.
- Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.
Technical specifications
| Brand | DBA (Disc Brakes Australia) |
|---|---|
| Part number | DBA2737E |
| Application position | Rear |
| Supplied quantity | 1 brake disc |
| Diameter [mm] | 312 |
| Disc ventilation | Kangaroo Paw |
| Number of mounting holes | 6 |
| Centre bore [mm] | 139.70 |
| Minimum Thickness [mm] | 16 |
| Thickness [mm] | 18 |
| Overall height [mm] | 68 |
| Pitch circle diameter [mm] | 108 |
| ECE R90 number | E11*90R02/06*59755*00 |
| Range | Street Series En-Shield |
| Supplier-listed product weight [kg] | 6.62 |
Vehicle compatibility
Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.
| Make | Model / chassis | Engine / variant | Years | Axle | Brake-system notes |
|---|---|---|---|---|---|
| Toyota | FJ Cruiser | 4.0 260BHP (2010-2016) | 2010-2016 | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 2.4 TD 149BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 2.7 160BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 2.8 TD 177BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 2.8 TD TRD 177BHP (2016-) | 2016- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 3.0 D 95BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 3.0 TD 163BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Fortuner AN150/160 | 4.0 278BHP (2016-) | 2016- | Rear | Brake Pads: DB2245; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 2.8 D-4D (GDJ150, GDJ155) 130 kW (2015-) | 2015- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 2.8 D-4D (GDJ150, GDJ155) 147 kW (2018-) | 2018- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 2.8 D-4D (GDJ150, GDJ155) 150 kW (2020-) | 2020- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 3.0 D-4D (KDJ150, KDJ155) 127 kW (2009-2015) | 2009-2015 | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 3.0 D-4D (KDJ150, KDJ155) 140 kW (2009-2015) | 2009-2015 | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 4.0 V6 (GRJ150) 202 kW (2009-) | 2009- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 4.0 V6 (GRJ150) 205 kW (2009-) | 2009- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
| Toyota | Land Cruiser 150 series (Prado) | 4.0 V6 (GRJ150) 207 kW (2009-) | 2009- | Rear | Brake Pads: DB1200; Disc Diameter [mm]: 312 |
Fitting and technical documents
Supply and fitting at DNA4x4
DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.
DNA4x4 on YouTube
Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.
| Weight | 6.62 kg |
|---|---|
| brand | DBA |
| product type | Brake Disc |
| dba range | Street Series En-Shield |
| axle position | Rear |
| disc diameter (mm) | 312 |
| thickness [mm] | 18 |
| overall height [mm] | 68 |
| centre bore [mm] | 139.70 |
| pitch circle diameter [mm] | 108 |
| disc ventilation | Kangaroo Paw |
| number of mounting holes | 6 |
