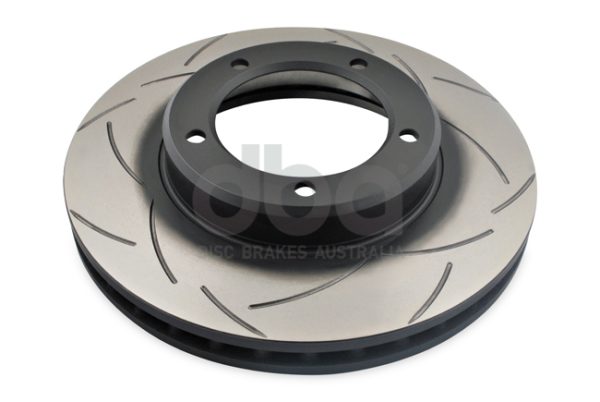

DBA Street Series T2 Slotted Front Brake Disc 322 x 32mm for Toyota Land Cruiser
DBA Street Series T2 Slotted Front Brake Disc 322 x 32mm for Toyota Land Cruiser
  1. DBA Street Series T2 Slotted Front Brake Disc 322 x 32mm for Toyota Land Cruiser
  2. DBA Street Series T2 Slotted Front Brake Disc 322 x 32mm for Toyota Land Cruiser

DBA Street Series T2 Slotted Front Brake Disc 322 x 32mm for Toyota Land Cruiser

Availability: Usually in UK/EU stock

£126.07 Incl. VAT (UK only)

DBA Street Series T2 Slotted Front Brake Disc 322mm (DBA790S). 322mm diameter. Supplied as 1 brake disc. Check the full vehicle compatibility table and brake-system notes before ordering.

SKU: DBA790S Categories: , , , , , , , , , , , , , , Tags: , Brand:
Guaranteed Safe Checkout

DBA Street Series T2 Slotted Front Brake Disc 322mm (DBA790S) is listed for the vehicle applications below.

Product features

  • T2 slotted friction surfaces help clear pad dust and gases during braking.
  • Kangaroo Paw internal ventilation uses DBA’s pillar design to dissipate heat.

Technical specifications

Brand DBA (Disc Brakes Australia)
Part number DBA790S
Application position Front
Supplied quantity 1 brake disc
Diameter [mm] 322
Disc ventilation Kangaroo Paw
Number of mounting holes 5
Centre bore [mm] 115
Minimum Thickness [mm] 30
Thickness [mm] 32
Overall height [mm] 65
Pitch circle diameter [mm] 144
DBA stage Stage 2
ECE R90 number E11*90R02/06*60514*00
Range Street Series T2 Slotted
Supplier-listed product weight [kg] 8.50

Vehicle compatibility

Match your vehicle’s engine, chassis, production year and brake setup to a listed row. Caliper type, disc size, wheel specification and brake-package notes can change which part fits.

Make Model / chassis Engine / variant Years Axle Brake-system notes
Toyota Land Cruiser 70 series 4.2 D (HDJ78, HDJ79) 122 kW (2001-2007) 2001-2007 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.2 D (HZJ76) 96 kW (2007-) 2007- Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.2 D (HZJ78) 96 kW (1999-2007) 1999-2007 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.2 D (HZJ79) 96 kW (1999-2007) 1999-2007 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.2 D 4×4 (HZJ78) 123 kW (1990-2001) 1990-2001 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.5 D (VDJ76) 151 kW (2007-2022) 2007-2022 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.5 D (VDJ78) 151 kW (2007-2016) 2007-2016 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser 70 series 4.5 D (VDJ79) 151 kW (2007-) 2007- Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser FZJ105 4.5 (1998-2002) 1998-2002 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser HZJ105 4.2 (1998-2007) 1998-2007 Front Brake Pads: DB1365; Disc Diameter [mm]: 322
Toyota Land Cruiser VDJ 4.2 D (2006-) 2006- Front Brake Pads: DB1365; Disc Diameter [mm]: 322

Fitting and technical documents

Supply and fitting at DNA4x4

DNA4x4 can supply your DBA brakes and arrange workshop fitting. Contact us with your registration or VIN if you need help checking the correct brake specification for your vehicle.

DNA4x4 on YouTube

Explore our builds, product videos and workshop updates. Watch DNA4x4 on YouTube.

Weight 8.50 kg
brand

DBA
product type

Brake Disc
dba range

Street Series T2 Slotted
axle position

Front
disc diameter (mm)

322
thickness [mm]

32
overall height [mm]

65
centre bore [mm]

115
pitch circle diameter [mm]

144
disc ventilation

Kangaroo Paw
number of mounting holes

5
