Pedders 1.75 Inch Lift Kit. With Assembled Foam Cell Struts. Isuzu D-Max Isuzu D Max 4WD, 2.5TD 2012-2017

Pedders 1.75 Inch Lift Kit. With Assembled Foam Cell Struts. Isuzu D-Max Isuzu D Max 4WD, 2.5TD 2012-2017

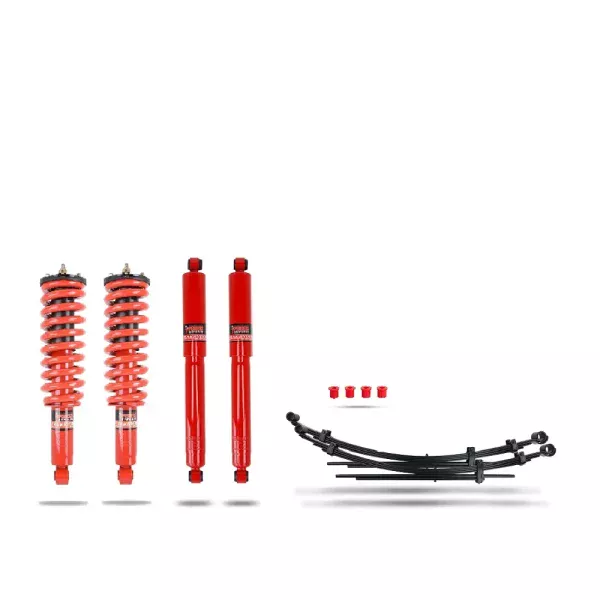

The Pedders 1.75 Inch Lift Kit with Foam Cell Struts is designed specifically for the Isuzu D Max 4WD 2.5TD from 2012 to 2017. It combines front coil springs, rear leaf springs, and fully assembled Foam Cell struts to raise the vehicle by around 40mm, enhancing ground clearance and optimising ride comfort for standard load use.

Quick Product Summary

This Pedders lift kit raises the Isuzu D Max 4WD 2.5TD by approximately 40mm, improving ground clearance and ride comfort using Foam Cell struts and new springs.

Key Product Details

• Product: Pedders 1.75 Inch Lift Kit. With Assembled Foam Cell Struts. Isuzu D-Max Isuzu D Max 4WD, 2.5TD 2012-2017
• Brand: Pedders
• Part Type: shock absorber
• Vehicle Fitment: Isuzu D Max 4WD, 2.5TD 2012-2017
• SKU: 803242-C794
• Category: SUSPENSION KITS
• Group: Kits
• Focus Keyword: Pedders shock absorber Isuzu D Max 4WD 2.5TD 2012-2017
• Warranty: Pedders products purchased through DNA4x4 are backed by a 3 year warranty.

Why Choose This Product?

This lift kit improves ride comfort by reducing harshness on rough surfaces through specially valved Foam Cell shocks and new rear leaf springs. The Foam Cell technology uses oil-saturated foam to prevent aeration and cavitation, ensuring stable damping forces and reliable performance. The kit includes sintered iron piston shocks with a large 40mm bore, grade steel coil springs, and fully assembled Ezifit struts with new top mounts, bump stops, and boots.

• Includes fully assembled Ezifit Foam Cell struts with new top mounts, bump stops and boots
• grade steel coil springs
• Sintered iron piston shocks with large 40mm bore
• Increased off-road ground clearance
• Improved ride comfort with optimised valving
• 1.75 inch lift amount providing increased clearance

Vehicle Compatibility

Ideal for Isuzu D Max 4WD 2.5TD owners from 2012 to 2017 seeking increased ground clearance and improved ride comfort for daily driving and standard load use. The kit supports fitting larger tyres and enhances vehicle stance without compromising rear spring load capacity. It is not intended for frequent towing or road use and maintenance, where heavy-duty alternatives should be considered.

• Make: Isuzu
• Model: D Max
• Variant: 4WD, 2.5TD
• Year Range: 2012-2017

Fitment Check Before Ordering

Before ordering, compare the vehicle details below with your own vehicle. This helps avoid confusion where multiple trims, drivetrains or year ranges exist.

• Check SKU / Item: 803242-C794
• Check Make: Isuzu
• Check Model: D Max
• Check Variant: 4WD, 2.5TD
• Check Year Range: 2012-2017

When Is This Part Needed?

Choose this Pedders lift kit when you want to raise your Isuzu D Max for better clearance on rough roads or uneven terrain while maintaining standard load capacity and ride comfort. It is suitable for owners who want a bolt-on suspension upgrade with quick installation and reliable damping performance for everyday driving conditions.

Technical Details

• Brand: Pedders
• SKU: 803242-C794
• Product Type: shock absorber
• Vehicle: Isuzu D Max 4WD, 2.5TD 2012-2017
• Make: Isuzu
• Model: D Max
• Variant: 4WD, 2.5TD
• Year Range: 2012-2017
• Weight: 85.94
• Parameter#1: Height: approx. +40mm
• Parameter#2: Minimum weight required: None

Product Information

This lift kit is designed for Isuzu D-Max owners seeking improved ride comfort and increased ground clearance. It combines front coil springs, rear leaf springs and assembled Foam Cell struts to enhance vehicle stance and handling off-road.

This lift kit raises the Isuzu D-Max approximately 40mm, optimising ground clearance and enabling fitment of larger tyres. It improves the unladen ride quality, reducing harshness on rough surfaces by combining new rear leaf springs with specially valved Foam Cell shocks. While suitable for standard load use and daily driving, those regularly towing or carrying heavy loads are advised to consider heavy-duty variants. The kit is ideal for users wanting better vehicle stance and off-road capability without compromising the standard rear spring load capacity.

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

The kit includes fully assembled Ezifit struts allowing quick bolt-on installation with no need for spring compressors or reuse of old parts. Components replace original units with no other vehicle modifications required. A professional wheel alignment is strongly recommended after fitting to optimise vehicle performance.

This kit is designed for improved ride comfort and standard load use

Supplier Listed Features

• 1.75 inch lift amount providing increased clearance
• Improved ride comfort with optimised valving
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore
• grade steel coil springs
• Includes fully assembled Ezifit Foam Cell struts with new top mounts, bump stops and boots

Warranty and Support

Pedders products purchased through DNA4x4 are backed by a 3 year warranty.

Need help confirming fitment? Contact DNA4x4 before ordering and we can help check the part against your vehicle details.

Helpful Links

Browse more DNA4x4 suspension parts or see product, installation and build content on the DNA4x4 YouTube channel.

Pedders shock absorber Isuzu D Max 4WD 2.5TD 2012-2017 FAQs

Will this lift kit fit my Isuzu D Max 4WD 2.5TD from 2014?
Yes, this Pedders 1.75 Inch Lift Kit is compatible with Isuzu D Max 4WD 2.5TD models from 2012 to 2017.

Does this kit require any vehicle modifications for installation?
No vehicle modifications are needed; the kit includes fully assembled Ezifit struts for a bolt-on installation.

Is this lift kit suitable for towing heavy loads?
This kit is designed for standard load use; if you regularly tow or carry heavy loads, a heavy-duty variant is recommended.

Do Pedders parts bought from DNA4x4 include a warranty?
Pedders products purchased through DNA4x4 are backed by a 3 year warranty.

Shop with confidence at DNA4x4 for vehicle-specific Pedders parts, practical advice, a 3 year Pedders warranty when purchased through DNA4x4, and support for Isuzu D Max 4WD, 2.5TD 2012-2017.
