SOLD OUT

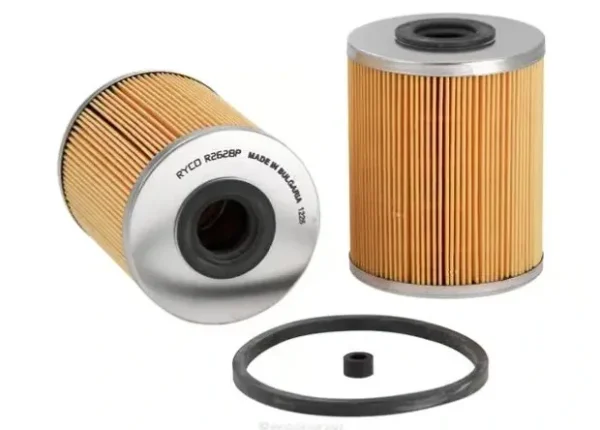

Ryco Fuel Filter for Citroen XM, Mitsubishi Carisma, Nissan Primastar & More
Availability: Usually in UK/EU stock£21.92 Incl. VAT (UK only)
Ryco Fuel Filter for Citroen XM, Mitsubishi Carisma, Nissan Primastar & More. Inside Diameter Top: 19.50 mm. See the full application and technical details before ordering.
Out of stock
Ryco Fuel Filter for Citroen XM, Mitsubishi Carisma, Nissan Primastar & More. Filters fuel before it reaches the engine fuel system. Confirm the housing, connections and engine specification; visually similar filters can have different fittings.
Technical details
| Specification | Value |
|---|---|
| Brand | Ryco |
| Manufacturer part number | R2628P |
| Product type | Fuel Filter |
| Catalogue weight (kg) | 0.12 |
| GTIN | 9312835002847 |
| Inside Diameter Top | 19.50 mm |
| Outside Diameter Top | 71.00 mm |
| Inside Diameter Bottom | 19.50 mm |
| Outside Diameter Bottom | 71.00 mm |
| Height Overall | 92.00 mm |
| Micron Rating (@ 98.7% efficiency) | 10.00 micron |
Vehicle compatibility
| Make | Model / chassis | Variant | Engine code | Years |
|---|---|---|---|---|
| Citroen | XM | 2.5 TD | THY (DK5ATE) | 1994-2000 |
| Mitsubishi | CARISMA | 1.9 TD (DA4A) | F8QT | 1996-2000 |
| Nissan | PRIMASTAR | 1.9 dCi 100 | F9Q 760 | 2002-2026 |
| Nissan | PRIMASTAR | dCi 100 | F9Q 760 | 2001-2026 |
| Peugeot | 605 | 2.5 Turbo Diesel | THY (DK5ATE) | 1994-1999 |
| Renault | AVANTIME | 2.2 dCi (DE01) | G9T 712 | 2002-2003 |
| Renault | ESPACE | 1.9 dCi (JK0G, JK0U) | F9Q 680, F9Q 820, F9Q 826 | 2002-2015 |
| Renault | ESPACE | 1.9 dCi (JK0U) | F9Q 820 | 2003-2005 |
| Renault | ESPACE | 1.9 dTi (JE0M) | F9Q 722 | 1999-2002 |
| Renault | ESPACE | 2.0 dCi (JK01, JK02, JK1H, JK1J, JK1K) | M9R 740, M9R 750, M9R 814, M9R 815, M9R 858 | 2006-2015 |
| Renault | ESPACE | 2.0 dCi (JK02, JK03) | M9R 740, M9R 760, M9R 750, M9R 761, M9R 762, M9R 763 | 2006-2015 |
| Renault | ESPACE | 2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) | M9R 760, M9R 761, M9R 762, M9R 763, M9R 815, M9R 859, M9R 812 | 2006-2015 |
| Renault | ESPACE | 2.2 12V TD (JE0E, JE0H, JE0P) | G8T 760, G8T 714, G8T 716 | 1996-2000 |
| Renault | ESPACE | 2.2 D | G8T 716 | 1997-2000 |
| Renault | ESPACE | 2.2 dCi (JK07) | G9T 645 | 2006-2015 |
| Renault | ESPACE | 2.2 dCi (JK0H) | G9T 742, G9T 743 | 2002-2006 |
| Renault | ESPACE | 3.0 dCi (JK0E, JK0Y) | P9X 715 | 2006-2015 |
| Renault | ESPACE | 3.0 dCi (JK0J, JK0V) | P9X 701 | 2002-2006 |
| Renault | GRAND SCÉNIC | 1.9 dCi | F9Q 804, F9Q 812, F9Q 803, F9Q 816, F9Q 818 | 2005-2009 |
| Renault | GRAND SCÉNIC | 1.9 dCi (JM0G, JM12, JM1G, JM2C) | F9Q 812 | 2004-2006 |
| Renault | GRAND SCÉNIC | 1.9 dCi (JM14) | F9Q 804, F9Q 803, F9Q 816, F9Q 818 | 2004-2008 |
| Renault | GRAND SCÉNIC | 1.9 dCi (JM15) | F9Q E 804 | 2005-2008 |
| Renault | KOLEOS | 2.0 dCi 175 (HCAK) | M9R 868 | 2016-2026 |
| Renault | KOLEOS | 2.0 dCi 175 4WD | M9R 868 | 2016-2026 |
| Renault | LAGUNA | 1.9 dCI (BG0E) | F9Q 752 | 2001-2005 |
| Renault | LAGUNA | 1.9 dCi | F9Q 664 | 2003-2007 |
| Renault | LAGUNA | 1.9 dCi | F9Q 718, F9Q 754 | 2001-2007 |
| Renault | LAGUNA | 1.9 dCi | F9Q 750 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (BG05) | F9Q 664 | 2004-2005 |
| Renault | LAGUNA | 1.9 dCi (BG08, BG0G) | F9Q 750, F9Q 650, F9Q 670, F9Q 674 | 2001-2007 |
| Renault | LAGUNA | 1.9 dCi (BG0E, BG0R) | F9Q 754 | 2001-2005 |
| Renault | LAGUNA | 1.9 dCi (BG0G, BG1A, BG1W) | F9Q 758, F9Q 670, F9Q 674 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (BG12) | F9Q 750, F9Q 758, F9Q 759 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (BG13) | F9Q 750, F9Q 758 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (BG1A, BG1V) | F9Q 758, F9Q 759 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (KG05) | F9Q 664 | 2004-2005 |
| Renault | LAGUNA | 1.9 dCi (KG0E, KG0R) | F9Q 752 | 2001-2005 |
| Renault | LAGUNA | 1.9 dCi (KG0G) | F9Q 750, F9Q 670, F9Q 674 | 2001-2007 |
| Renault | LAGUNA | 1.9 dCi (KG0G, KG1A, KG1W) | F9Q 758, F9Q 674 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (KG12) | F9Q 758, F9Q 759 | 2005-2007 |
| Renault | LAGUNA | 1.9 dCi (KG1V) | F9Q 758, F9Q 759 | 2005-2007 |
| Renault | LAGUNA | 2.0 dCi (BG14, BG1S) | M9R 760 | 2006-2007 |
| Renault | LAGUNA | 2.0 dCi (BG1T) | M9R 740 | 2005-2006 |
| Renault | LAGUNA | 2.0 dCi (KG1S) | M9R 760 | 2006-2007 |
| Renault | LAGUNA | 2.0 dCi (KG1T) | M9R 740 | 2005-2006 |
| Renault | LAGUNA | 2.2 D (B56F/2) | G8T 706, G8T 752, G8T 790, G8T 794 | 1993-2001 |
| Renault | LAGUNA | 2.2 D (K56F/2, S56F) | G8T 706, G8T 752, G8T 790, G8T 794 | 1995-2001 |
| Renault | LAGUNA | 2.2 dCi | G9T 600, G9T 605, G9T 706, G9T 707 | 2005-2007 |
| Renault | LAGUNA | 2.2 dCi (BG09) | G9T 600 | 2004-2005 |
| Renault | LAGUNA | 2.2 dCi (BG0F) | G9T 702, G9T 700 | 2001-2006 |
| Renault | LAGUNA | 2.2 dCi (KG09) | G9T 600 | 2004-2005 |
| Renault | LAGUNA | 2.2 dCi (KG0F) | G9T 702, G9T 703, G9T 706, G9T 707, G9T 700 | 2001-2006 |
| Renault | LAGUNA | 2.2 dCi (KG0F, KG1N) | G9T 600, G9T 605, G9T 706, G9T 707 | 2005-2007 |
| Renault | LAGUNA | 2.2 dT (B569) | G8T 760 | 1996-2001 |
| Renault | LAGUNA | 2.2 dT (K569) | G8T 760 | 1996-2001 |
| Renault | MASTER | 2.5 dCi 100 (ED4V, ED8V, ED0U, ED0V, ED8U, HD0U, HD0V,… | G9U 754 | 2002-2010 |
| Renault | MASTER | 2.5 dCi 100 (FD0U, FD0V, FD3U, FD3V, FD8U, FD8V) | G9U 754 | 2003-2010 |
| Renault | MASTER | 2.5 dCi 100 (JD1W, JDCV) | G9U 754 | 2003-2010 |
| Renault | MASTER | 2.5 dCi 120 (ED0M, ED0U, ED0W, ED4M, ED8M, ED8W, HD0M,… | G9U 720, G9U 754, G9U 750, G9U 724 | 2001-2010 |
| Renault | MASTER | 2.5 dCi 120 (FD0M, FD0U, FD0W, FD2M, FD2W, FD3M, FD3U,… | G9U 720, G9U 754, G9U 750, G9U 724 | 2001-2007 |
| Renault | MASTER | 2.5 dCi 120 (JD0M, JD1M, JD1W) | G9U 720, G9U 754, G9U 750, G9U 724 | 2001-2006 |
| Renault | MEGANE | 1.9 dCi | F9Q 800, F9Q 803, F9Q 804, F9Q 816, F9Q 818 | 2002-2026 |
| Renault | MEGANE | 1.9 dCi | F9Q 808 | 2002-2012 |
| Renault | MEGANE | 1.9 dCi (BM0G, CM0G) | F9Q 800 | 2002-2008 |
| Renault | MEGANE | 1.9 dCi (KM0G, KM1G, KM2C, KMRG) | F9Q 800 | 2003-2009 |
| Renault | MEGANE | 1.9 dCi (KM14) | F9Q 804, F9Q 803 | 2005-2009 |
| Renault | MEGANE | 1.9 dCi (KM14) | F9Q 818 | 2005-2009 |
| Renault | MEGANE | 1.9 dCi (KM14) | F9Q E 804 | 2006 |
| Renault | MEGANE | 1.9 dCi (LM0G, LM1G, LM2C) | F9Q 800 | 2003-2026 |
| Renault | MEGANE | 1.9 dCi (LM14, LM1D) | F9Q 804, F9Q 803, F9Q 816, F9Q 818 | 2005-2026 |
| Renault | SAFRANE | 2.2 dT (B54G) | G8T 740 | 1996-2000 |
| Renault | SCÉNIC | 1.9 D | F9Q 804, F9Q 812, F9Q 803, F9Q 816, F9Q 818 | 2006-2008 |
| Renault | SCÉNIC | 1.9 dCi | F9Q 804 | 2003-2008 |
| Renault | SCÉNIC | 1.9 dCi (JM0G, JM12, JM1G, JM2C) | F9Q 812 | 2003-2006 |
| Renault | SCÉNIC | 1.9 dCi (JM14) | F9Q 804, F9Q 803, F9Q 816, F9Q 818 | 2005-2008 |
| Renault | SCÉNIC | 1.9 dCi (JM15) | F9Q 804 | 2005-2008 |
| Renault | SCÉNIC | 1.9 dCi 130 | F9Q 804 | 2005-2009 |
| Renault | TRAFIC | 1.9 D | F8Q 606, F8Q 600 | 1997-2001 |
| Renault | TRAFIC | 1.9 dCi 80 (FL0B) | F9Q 760, F9Q 762 | 2001-2006 |
| Renault | TRAFIC | 2.5 D | 8140.67.2500, 8140.67.2550, 8140.67.2580, S8U 750, S8U 752, S8U 758, S8U 780 | 1989-2001 |
| Renault | TRAFIC | 2.5 D 4×4 | 8140.67.2500, 8140.67.2580, S8U 750, S8U 752, S8U 758, 8140.67.2550 | 1989-2001 |
| Renault | VEL SATIS | 2.0 dCi (BJ03) | M9R 760 | 2005-2009 |
| Renault | VEL SATIS | 2.0 dCi (BJ03, BJ0B) | M9R 760, M9R 762, M9R 763 | 2006-2009 |
| Renault | VEL SATIS | 2.2 dCi (BJ0E, BJ0F) | G9T 702, G9T 703 | 2002-2009 |
| Renault | VEL SATIS | 2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) | G9T 702, G9T 703, G9T 600, G9T 700, G9T 606, G9T 607 | 2004-2009 |
| Renault | VEL SATIS | 2.2 dCi (BJ0H) | G9T 600, G9T 606, G9T 607 | 2002-2005 |
| Renault | VEL SATIS | 2.2 dCi (BJ0M) | G9T 702, G9T 700 | 2004-2009 |
| Suzuki | GRAND VITARA | 1.9 DDiS All-Wheel Drive (JT419, TD44, JB419WD,… | F9QB, F9QC | 2005-2015 |
Fitting information
Compare the engine code, model / chassis and build years in the application table with the vehicle and the original part. Registration year alone may not identify the correct filter. Follow the vehicle manufacturer’s service procedure and replacement interval.
