Description

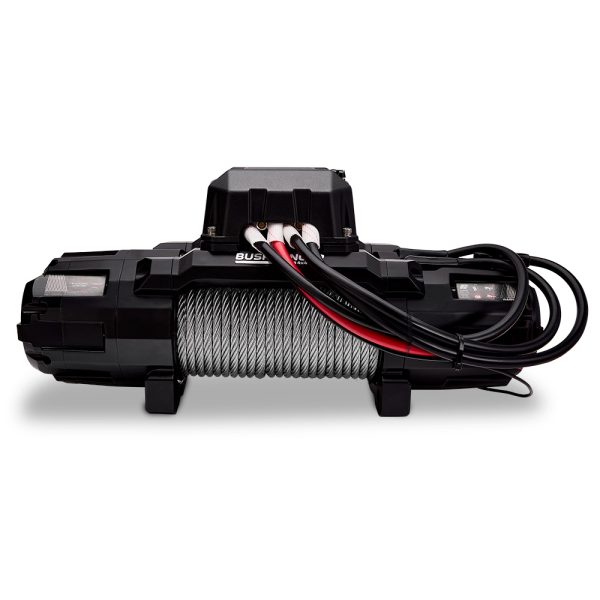

BUSHRANGER REVO MKII Winch | 10,000lb | WIRE
LIGHTER, FASTER, SAFER, TOUGHER
The BUSHRANGER REVO MKII Winch 10000lb WIRE Engineered in Australia to meet the demands of serious off-road enthusiasts who require dependable performance, the REVO MKII defines a new era of unmatched reliability, effortless fitment and operation, enhanced safety, and unparalleled longevity.

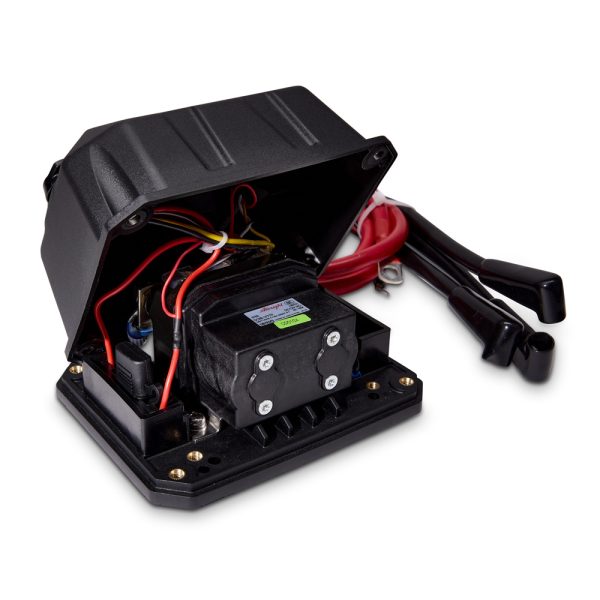

COMPACT MULTI-FIT CONTROL BOX
The compact, lightweight control box provides easier installation in confined areas, reduces interference, & incorporates numerous threaded insert locations for immediate fitting in most bull bars.
POWERED BY ALBRIGHT INTERNATIONAL
The Albright DC Contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time and time again.
EFFORTLESS CLUTCH OPERATION
The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
ZERO DRAG BRAKING
The gearbox-mounted brake provides 100% load holding & the capacity for fast powered unspooling, under no load, without any damage to the winch.
PREMIUM MOTOR DESIGN
The 12V series wound motor is constructed using high grade materials to reduce current draw and increase line speeds, providing prolonged motor lifespan under full load conditions.
ROBUST CONSTRUCTION
Uncompromised strength and rigidity is at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.
DIMENSIONS: 582mm (L) x 194mm (W) x 185mm (H)
WEIGHT: (FITTED) 44.2kg
RATED LINE PULL: (1st Layer) 10,000lbs (4, 536kg)
MOTOR: 3.9kW (5.2 HP)

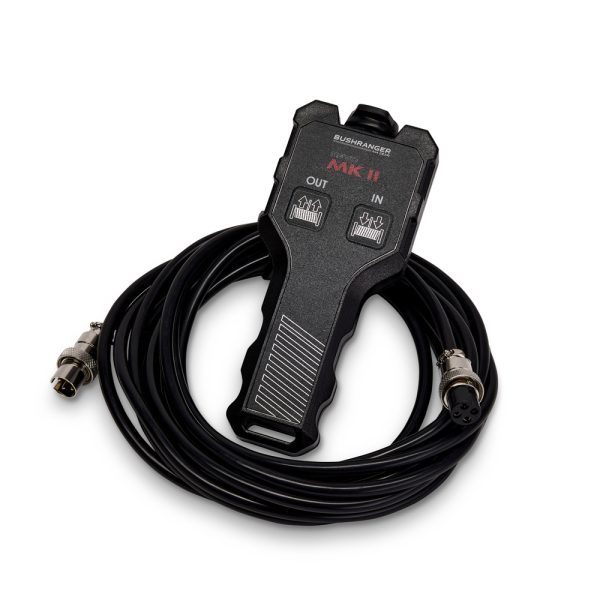

REMOTE CONTROL: Wired Hand Control – 5m Lead
ELECTRICAL CONTACTOR: Albright DC88P Contactor
GEARBOX: 171:1 2 Stage Planetary & 2 Stage Spur gear
BRAKE: Gearbox mounted 100% load holding proportional friction brake
CLUTCH: Rotating Ring Gear | 90° Turn handle (no lift)
ROPE: 9.2mm diameter x 28m Wire Rope
FAIRLEAD: Two Position, Aircraft Grade Aluminium Hawsw fairlead
FINISH: Electrophorus Pretreated Black Satin Powder Coated Finish
WATERPROOF RATINGS: IP68 Winch Motor and Gearbox
WARRANTY: Limited Lifetime Warranty (7 Year Warranty on Electrical Components)
CERTIFICATIONS: CE
| DIMENSIONS | 582mm (L) x 194mm (W) x 185mm (H) | ||
|---|---|---|---|
| WEIGHT | (FITTED) 44.2kg | ||
| RATED LINE PULL | (1st Layer) 10,000lbs (4, 536kg) | ||
| MOTOR | 3.9kW (5.2 HP) | ||
| REMOTE CONTROL | Wired Hand Control – 5m Lead | ||
| ELECTRICAL CONTACTOR | Albright DC88P Contactor | ||
| GEARBOX | 2 Stage Planetary & 2 Stage Spur gear | ||
| BRAKE | Gearbox mounted 100% load holding proportional friction brake | ||
| CLUTCH | Rotating Ring Gear | 90° Turn handle (no lift) | ||
| ROPE | 9.2mm diameter x 28m Wire Rope | ||
| FAIRLEAD | Two Position, Aircraft Grade Aluminium roller fairlead | ||
| FINISH | Electrophorus Pretreated Black Satin Powder Coated Finish | ||
| WATERPROOF RATING | IP68 Winch Motor and Gearbox | ||
| WARRANTY | Limited Lifetime Warranty (7 Year Warranty on Electrical Components) |
| LOAD (LGS/LBS) | Line Speed (MPM/FPM) | Motor Current (Amps) | |||
|---|---|---|---|---|---|
| 0 | 15/49.2 | 45 | |||
| 1814/4000 | 3.0/9.8 | 201 | |||
| 2722/6000 | 2.2/7.2 | 260 | |||
| 3629/8000 | 1.6/5.2 | 322 | |||
| 4536/10000 | 1.1/3.6 | 380 |
