Bushranger Revo MK2 Winch | New UK Release — DNA 4×4
Bushranger Revo MK2 Winch — New Release for UK Off-Roaders
The Bushranger Revo MK2 Winch is a brand-new release engineered in Australia for serious 4×4 recovery — and it’s now available in the UK through DNA 4×4
Defines a new era in dependable recovery:
compact fitment, smarter electrics, sealed durability and user-friendly operation.
As one of the first UK retailers to spotlight this new model, DNA 4×4 is bringing you
the details that matter—so you can choose with confidence and get trail-ready.
For Bushranger’s official announcement, visit
bushranger.com.au/revo-mkii.
Key Features & Engineering Excellence
- Compact multi-fit control box for clean installs behind modern bull bars/bumpers.
- Albright contactor (sealed) for reliable current delivery and longevity.
- Zero-drag, gearbox-mounted brake — 100% load holding, fast powered unspooling under no load.
- Series-wound 12 V motor tuned for strong line speeds with sensible current draw.
- Four-stage steel gearing in a tough alloy body with durable satin black finish.
- No-lift clutch handle, factory clocked for most bull bar layouts (90° turn).
- IP68 sealing to motor & gearbox for water, dust and debris protection.
- 500 A isolation switch included for safety when not in use.
- Wireless + wired controller on synthetic models (wire models include wired controller).
Bushranger Revo MK2 Winch Models, Capacities & Rope Options
The Revo MK2 range covers the most popular capacities for modern touring and work rigs:
- 10,000 lb — ideal for lighter vehicles and mid-size 4×4 platforms.
- 12,000 lb — better for heavier wagons and fully-laden builds.
Each capacity is available with synthetic rope (light weight, easy handling) or
wire cable (traditional, abrasion resistant). Synthetic models include a wireless
controller (plus 5 m lead); wire models include a wired controller.
Quick Links to Buy Bushranger Revo MK2 Winch
Explore more options in Recovery → Winches — and see all Recovery gear and Camping essentials.
Comparison: Which Revo MK2 is Right for You?
| Model | Capacity | Rope Type | Controller | Fairlead | Best For |
|---|---|---|---|---|---|
| RWM100S | 10,000 lb | Synthetic | Wireless + 5 m wired | Aluminium hawse | Mid-size 4×4s, weight-conscious builds |
| RWM100W | 10,000 lb | Wire | Wired | Stainless roller | Traditionalists, abrasion-heavy terrain |
| RWM120S | 12,000 lb | Synthetic | Wireless + 5 m wired | Aluminium hawse | Heavier tourers, fully-laden rigs |
| RWM120W | 12,000 lb | Wire | Wired | Stainless roller | High abrasion environments, heat tolerance |

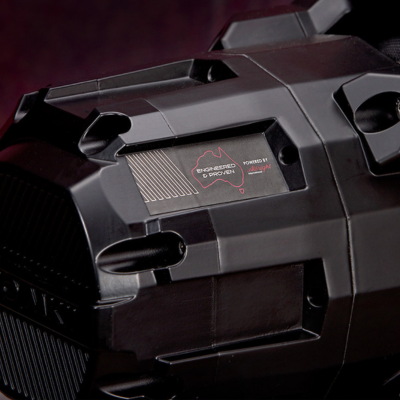

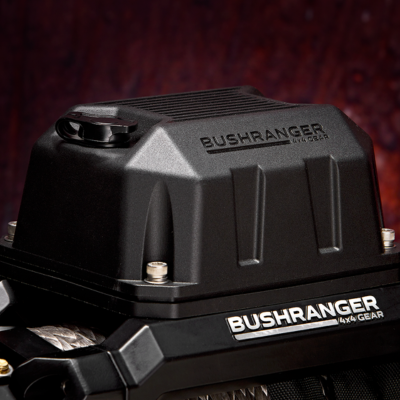

Smarter Installation & Everyday Usability
The compact control box offers multiple mounting points for neat packaging. Add the included 500 A isolation switch for on-road safety, and enjoy tidy wiring with heavy-gauge leads designed for the job.
Bushranger Revo MK2 Winch Effortless Clutch Operation
The no-lift clutch handle is factory clocked for most bull bar layouts and takes just a 90° twist to engage or disengage—easy to reach even when your winch is tucked away.
Built to Work When It Counts
Hardened steel gearing, an alloy body and IP68 sealing to motor and gearbox mean confident performance in water, mud and dust. The zero-drag brake holds the load and allows quick, controlled spooling when you’re setting up a recovery.
Bushranger Revo MK2 Winch Specifications (At a Glance)
- Part Numbers
- RWM100S, RWM100W, RWM120S, RWM120W
- Dimensions
- 582 × 194 × 185 mm (10,000 lb) / 600 × 194 × 185 mm (12,000 lb)
- Weight (fitted)
- 32.7 kg | 44.2 kg | 33.9 kg | 46.7 kg (model dependent)
- Rated Line Pull (1st layer)
- 10,000 lb (4536 kg) / 12,000 lb (5443 kg)
- Motor
- 3.9 kW (5.2 HP) / 4.6 kW (6.2 HP) series-wound 12 V
- Electrical
- Albright DC88P contactor
- Gearbox
- 2-stage planetary + 2-stage spur (4-stage hardened steel)
- Brake
- Gearbox-mounted, proportional friction, 100% load holding
- Clutch
- Rotating ring gear — 90° turn handle (no-lift)
- Fairlead
- Aluminium hawse (synthetic) / 304 stainless roller (wire)
- Sealing
- IP68 motor & gearbox
- Warranty
- Limited lifetime (7-year electrical)
- Certifications
- CE
Bushranger Revo MK2 Winch Real-World Recovery
What’s Included in the Box
- Bushranger Revo MK2 Winch (model/rope as ordered)
- Wireless controller + receiver and 5 m lead (synthetic models)
- Wired controller with 5 m lead (wire models)
- Aluminium hawse fairlead (synthetic) or stainless steel roller fairlead (wire)
- Forged hook with pull tag
- Main power isolation switch with universal bracket
- Multi-fit control box with Albright contactor & heavy-gauge wiring
- High-tensile mounting hardware
Bushranger Revo MK2 Winch — FAQs
What’s the difference between Bushranger Revo MK2 Winch 10,000 lb and 12,000 lb models?
Capacity. Choose 10k for lighter vehicles; 12k for heavier or fully-laden rigs. When unsure, step up a size for a safety margin.
Should I choose synthetic rope or steel cable?
Synthetic is lighter and easier to handle (and it floats). Steel is highly abrasion-resistant and tolerant of heat. Many daily drivers prefer synthetic for ease of use.
Do synthetic models include a wireless controller?
Yes. Synthetic-rope Revo MK2 winches include a wireless hand controller (plus a 5 m wired lead). Wire-rope models include the wired controller.
Is the Revo MK2 waterproof?
The motor and gearbox are sealed to IP68, protecting against water, dust and debris in real-world conditions.
Where can I see the full range?
Shop the category: Recovery → Winches, or read our Revo MK2 info page. Official details: Bushranger AU.
Ready to Equip Your 4×4?
We stock the latest Bushranger Revo MK2 Winch models and can help you choose the right capacity and rope type for your build.
Order online or speak to our team—then check out installs and tips on
YouTube @dna4x4s.
